42-Series In-Line Auger Grain Carts

42-Series Single Auger Grain Carts

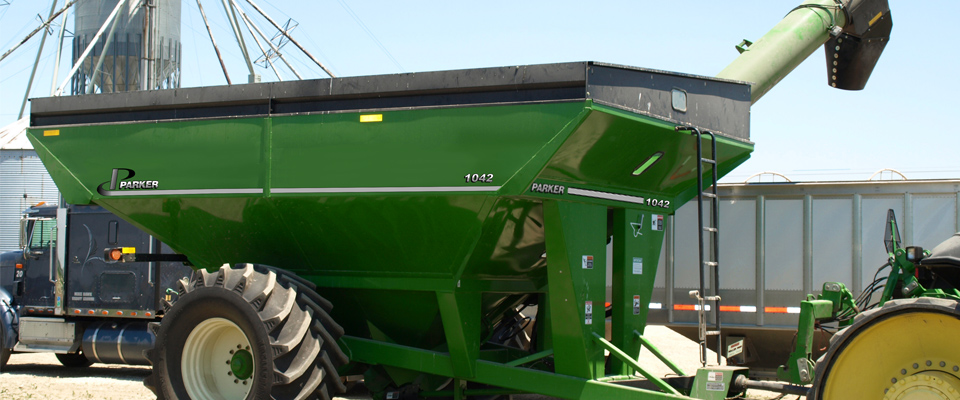

The Parker 42-Series of side-fold, corner-auger grain carts feature greater reach, lightning-fast unloading speeds and enhanced unloading versatility to meet your demanding harvest needs.  The side-fold, single-auger design allows the upper auger to be longer, increasing side reach and height, which allows the operator to drop grain straight down for greater control.  The standard two-way rubber downspout provides side-to-side control for easily topping off trucks.  Available tank capacities range from 750 to 1100 bushels and feature unloading speeds up to 500 bushels per minute depending on model.  The unique auger sump and steep side slopes ensure quick and complete cleanout of grain during each unload.  The 42-Series builds on the Parker reputation of lightning fast unloading with a tradition of value!

    Auger

    Auger & Downspout

    • Models 1142 and 1042 feature a 20" diameter auger for unloading speeds up to 500 bushels per minute
    • Models 842 and 742 feature an 18" diameter auger for unloading speeds up to 450 bushels per minute
    • Patented cushioned auger mechanism ensures a smooth engagement of the upper and lower auger sections
    • Fully visible auger fold position indicator to monitor the auger during the entire folding process
    • 7/16" thick auger flighting for long-term, trouble-free operation
    • Electronic balancing of the upper and lower augers virtually eliminates vibration for long-term auger life
    • Two-way downspout is hydraulically controlled with 60-degrees of side-to-side rotation which adds unloading flexibility when filling semis
    • Auger unloading light automatically turns on when the auger is unfolded
    • When unfolded, a hydraulic locking mechanism holds the upper and lower auger together for a leak-free seal during unloading
    • Exclusive, heavy-duty 45° gearbox features an extra-large 1 3/4" output shaft static rated at 330 H.P. and dynamic rated at 153 H.P.



    Tank

    Tank Design

    • Capacities of 1100, 1000, 850 and 750 bushels with steep slopes for handling the wettest grain
      • Recessed auger sump intake and graphite-coated interior surfaces ensure complete cleanout with faster unloading speeds
    • Model 1142 features a standard weatherguard rollover tarp to protect your harvested crop
    • Hydraulically operated 36" flow gate with highly visible position indicator for controlling grain flow
    • Wheel-operated gravity unloading door for pit dumping and clean-out
    • Front viewing ladder and front and rear shatterproof windows for easily viewing contents
    • The exclusive manufacturing process crimps sides for added strength and a sleek appearance
      • Exposed seams are silicone sealed for corrosion resistance
    • D.O.T.-approved flashing LED amber and red taillights, reflective marking and SMV emblem for safer transport
    • Durable top coat of high-grade enamel paint is baked on in tractor red or green for a smooth, automotive-like finish

    Undercarriage

    Undercarriages & Construction

    • The heavy-wall tubular steel main frame and axle and 8-gauge steel underframe carry the heaviest loads with ease while the heavy-duty jack allows for easy hookup and safer storage
    • 10-bolt hubs feature gusseted reinforcement for longer life and the greatest carrying capacity
      • Field-proven, 4 1/2" spindles with 50-ton rating are manufactured with special alloy, high-tensile strength steel
    • Cast 2" single-tang hitch features a smooth chamfer opening and bushings that fit numerous hitch pin sizes which allows the cart to follow the terrain for smooth trailing
    • Optional Width-adjustbale axle to match your cropping practices

    Tire Options

    • High-flotation single wheels and tires available on all models
    • Straddle Duals available on models 1042, 842 and 742

    42” Equalizer®Track System

    • 42" wide track belt with 87” of ground contact length wtih the 2-bogie design on model 1142
    • Patented design features 8° of side-to-side camber and 20° of front-to-back pivot with independent movement of each track to provide uniform ground contact on uneven terrain.
    • Exclusive rubber belt construction molds the tread, guide lugs and belt together as one piece, which increases durability and eliminates the need for glued on components.
    • Cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and reduced stress on the belt.
    • Shallow tread belt design provides greater flotation and traction.
    • 40" main end-wheels feature 10-bolt hubs that are greaseable with triple-lip seals and a steel guard for optimum lubrication.
      • Greaseable hubs ensure the operator can push out any dirt and debris from the hub, increasing life and eliminating down time.
    • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution.
      • Conveniently located PSI gauge allows the operator to easily check pressure, ensuring the proper tension is being applied to the belt.
    • Standard auto-greaser system for automatic application at more frequent intervals for consistent lubrication.

    Traditional Track System

    • 36" wide track belt with 105” of ground contact length on the 4-bogie design available on model 1142 and 87” of ground contact length on the 2-bogie design available on models 1142 and 1042
    • 40" main end-wheels feature 10-bolt hubs that are greaseable with triple-lip seals and a steel guard for optimum lubrication.
      • Greaseable hubs ensure the operator can push out any dirt and debris from the hub, increasing life and eliminating down time.
    • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution.
      • Conveniently located PSI gauge allows the operator to easily check pressure, ensuring the proper tension is being applied to the belt.
    • Cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and reduced stress on the belt.
    • Exclusive rubber belt construction molds the tread, guide lugs and belt together as one piece, which increases durability and eliminates the need for glued on components.

    Economical Track System

    • Available on models 1142, 1042 and 842 with a 36" wide rubber track belt that is molded as 1 peice for the greatest strength and durability
    • 32" main end-wheels feature 8-bolt hubs for added durability
    • Two cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and give the track 75" of ground contact length
    • All end-wheels and mid-rollers feature hubs that are greaseable and triple-lip seals with a steel guard for optimum lubrication
    • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution

    UHarvest

    UHARVEST PRO GRAIN CART SCALE

    Your complete ISOBUS grain cart scale and harvest data solution!  By utilizing ISOBUS technology, the user can operate the UHarvest® Pro grain cart scale and data management system on the virtual terminal display in the tractor, eliminating the need for batteries and extra monitors in the cab.  Simply plug into the ISOBUS port and you’re ready to go!  With a free subscription to Slingshot® reporting, you have a complete data management solution that seamlessly integrates with most crop insurance requirements.  Need to send your data to the cloud?  Simply connect your mobile device with cellular data to the Bluetooth signal and open the free UHarvest Pro app to make it happen!

    Standard Features

    • The UHarvest Pro grain cart scale and data management system works on any ISOBUS Virtual Terminal display. The easy-to-use platform permits easy setup and operation directly from a monitor that you already have in the tractor cab.  No need for additional monitors, cabling or batteries!
    • The harvest data structure allows you to track each load using a grower, farm and field structure as well as truck, destination and crop variety for complete harvest data reporting.
    • Easily add up to 5 custom crop types along with the included crop types. Plus, with UHarvest Pro, you can setup truck and bin capacities to help monitor your harvest production and storage requirements.
    • Accu-Save automatically records loads using the proximity sensor mounted on the driveshaft of the grain cart for the most accurate and complete harvest record keeping possible.
    • Hitch weight management feature allows the operator to maintain optimum tractor and cart control by keeping the grain load evenly distributed.  This feature not only monitors grain and total cart weight, it also shows real-time hitch weight and a color gauge to avoid overloading the hitch during loading.
    • Use the Combine Verify screen to easily calibrate the combine yield monitor with one touch. This calibration event is saved in the UHarvest Pro system once the verification process is completed.
    • Slingshot cloud reporting is included with every purchase of the UHarvest Pro grain cart scale system.  Slingshot is a secure, first-of-its-kind, web-based system that lets you send, store and share your harvest data.  Using the free UHarvest Pro mobile app, you can easily send files from the field on a mobile device with cellular connection to your Slingshot account.
    • The free UHarvest Pro mobile app allows you to send your harvest data to Slingshot directly from the field.  Once you have connected your mobile device to the Bluetooth connection provided by the GCM, launch the app and you're ready to go.  Upload once a day or once a season. It's easy to use and completely up to you! (available on IOS and Android devices).

    Optional Features

    • The optional Accu-Load technology provides quick and easy loading of trucks by closing the grain cart’s flow gate when the desired weight is unloaded.  After you’ve installed the HCV (hydraulic control valve) on the cart, simply push the “Auto” button for precise weight unloading.  Each truck weight is matched to the truck name for easier operation.  The operator can then focus on topping off each truck and proper grain placement.
    • Want to easily send a report to your crop insurance agent that includes the actual dry bushel count? Consider it done with the optional Moisture Sense system. It measures grain moisture as it leaves the cart and averages the content of each load, then converts all grain unloaded to standard dry bushels for the ultimate in harvest record keeping.

    Visit uharvest.net for complete information pertaining to the UHarvest Pro grain cart scale and data management system.

    Options

    Scale Packages:

    • UHarvest Pro ISOBUS Grain Cart Scale & Data Management Solution
      • Please refer to the UHarvest tab or uharvest.net for more information
    • Model 520 Scale Package
      • Features auto-log and the patent-pending start/stop button for ease of use.
      • The large, mutli-line display features an alpha-numeric keyboard for easily editing or changing fields
      • Combine check button can help calibrate the the combine's yield monitor, accumulation of weights per field entry and the ability to store up to 1 year's worth of harvest data in the monitor's memory
      • Complete with PC software and a 1GB USB flash drive to easily download your harvest information to your computer in Excel or PDF format
    • Model 410 Scale Package
      • Scale display specifically designed for ease of use with the patent-pending start/stop button
      • Assign, view and change six character field information and accumulate weights within a field
      • Optional printer is available for record keeping
    • Remote scale display for the 520 and 410 scale indicators features a 4" x 18" LED screen that can be mounted to the side of the grain cart for easy viewing of the loaded weight of the grain cart

    Weatherguard Roll Tarp

    • Custom-designed tarps offer the fit, appearance and ease of operation expected on Unverferth equipment
    • Heavy-duty, 18 oz. black canvas for long life
    • Semi trailer locking design for optimum protection from high wind and moisture
    • Low-profile tarp bows are reinforced to eliminate sagging
    • Entire roll-over operation performed from the ground - no straps required
    • Standard on model 1142, optional on all other models

    Hydraulic Drives

    • Tongue-mounted for easy installation - the grain cart can still be operated with a PTO if desired
    • Two hydraulic motor capacities depending on model:
      • 100 gallon per minute provides up to a 375 bushels per minute unloading speed and requires 3 sets of hydraulic ports
      • 55 gallon per minute provides up to a 300 bushel per minute unloading speed and requires 2 sets of hydraulic ports

    Color Camera

    • 7" color, 12V monitor which mounts in the tractor cab
    • Sideboard-mounted, weather-proof camera to monitor the unloading auger
    • Optional second color camera views rear traffic during transport

    Auto-Greaser for Tracked Undercarriage

    • Reduce your daily maintenance on track undercarriages by automatically delivering small amounts of grease to each pivoting joint at more frequent intervals
    • Powered by an electric pump with a 2-liter grease reservoir and programmable intervals

    Downloads

    Specs

    Model Number 1142 1042 842 742

    *Bushel capacities were measured with #2 corn at 15% moisture (56 lb. test weight)

    Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.

    Capacity (bushels) 1,100 1,000 850 750
    Minimum Tractor H.P. 200 200 180 150
    Loaded Tongue Weight (lbs) 4,800 4,700 5,550 4,990
    Empty Tongue Weight (lbs) 1,500 1,450 1,350 1,200
    Auger Diameter 20" 20" 18" 18"
    Unload Speed (bushels/min.) 500 500 450 450
    Flighting Thickness 7/16" 7/16" 7/16" 7/16"
    Hub Size/Spindle Diameter 10 bolt - 4 1/2" 10 bolt - 4 1/2" 10 bolt - 4 1/2" 10 bolt - 4 1/2"
    Hydraulic Remotes Required 3 3 3 3
    Front/Rear Slopes (degrees) 39 - 34 39 - 34 39 - 34 39 - 34
    Hopper Length 21' 6" 21' 6" 16' 16'
    Hopper Width 13' 11' 10" 11' 10" 11' 10"
    Auger Side Reach Max Measured to Inside Edge of Rubber Spout 9' 9" 9' 9" 9' 2" 9' 2"
    Auger Side Reach Min 7' 3" 7' 3" 7' 2" 7' 2"
    Overall Transport Length 29' 7" 29' 7" 27' 7" 27' 7"
    Hitch to Center of Axle 16' 10" 16' 10" 15' 7" 15' 7"
    Single Wheels and Tires
    Measured Undercarriage Adj. Axle 1050/50x32 Rigid Axle 900/65x32 Rigid Axle 800/65x32 Rigid Axle 800/65x32
    Empty Weight (lbs) 14,500 13,050 12,750 11,450
    Hitch Height 1' 10" 1' 10" 1' 10" 1' 10"
    Hopper Height Low Side 11' 8" 11' 8" 11' 3" 11'
    Hopper Height High Side 12' 7" 12' 6" 12' 3" 12'
    Auger Height with Spout Straight Down 13' 13' 12' 11" 12' 11"
    Height to Top of Auger in Unload Position 17' 11" 17' 11" 17' 11" 17' 11"
    Width Outside of Tires 14' 6" 14' 4" 12' 10" 12' 10"
    Center of Tire to Center of Tire

    11' 3" min./12' 9" max.

    11' 2" 10' 10'
    Under Frame Clearance 1' 5" 1' 5" 1' 5" 1' 5"
    Tracks
    Measured Undercarriage 36"x112" Auto-Tension 36"x112" Auto-Tension 36"x112" Auto-Tension N/A
    Empty Weight (lbs) 21,500 21,000 19,200 -
    Hitch Height 1' 5" 1' 5" 1' 5" -
    Hopper Height Low Side 11' 1" 11' 1" 11' 3" -
    Hopper Height High Side 12' 2" 12' 1" 12' 3" -
    Auger Height with Spout Straight Down 12' 11" 12' 11" 12' 10" -
    Height to Top of Auger in Unload Position 17' 7" 17' 7" 17' 8" -
    Width Outside of Tracks 13' 11" 13' 11" 13' 7" -
    Center of Track to Center of Track 10' 11" 10' 11" 10' 7" -
    Under Frame Clearance 1' 1" 1' 1" 1' 4" -

    Loaded Tire Ground Pressure - P.S.I. calculated at the 3" penetration level.

    For use as a comparitive guide in choosing between various tire/track options.

    Model Number 1142 1042 842 742
    42"x131" Equalizer Tracks 10.70
    36"x148" Hydraulic Tension Tracks 9.48
    36"x131" Hydraulic Tension Tracks 12.00
    36"x112" Auto-Tension Tracks 13.64 12.80 11.37
    480/80x46 Straddle Duals   18.17
    420/80x46 Straddle Duals     18.22 16.28
    520/85x42 Straddle Duals   15.79 13.02 11.63
    480/80x42 Straddle Duals     15.62 13.96
    520/85x38 Straddle Duals       24.44
    IF 1250/50x32 (188A8) 16.36 15.01
    1250/50x32 (201A8) 16.36 15.01
    1250/50x32 (188A8) 17.99 16.40
    1050/50x32 19.61 18.03
    900/70x32 23.56
    900/65x32 23.10 21.23 17.50 15.63
    900/60x32   24.44 20.14 17.99
    800/65x32     22.93 20.48
    800/60x32     26.37 23.55
    650/75x32       22.67
