Seed Chariot Bulk Box Seed Tender

Seed Chariot Bulk Box Seed Tender

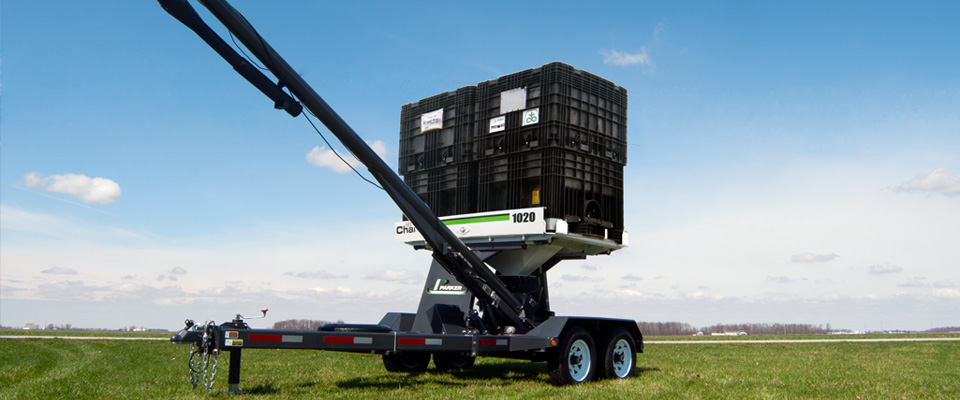

More growers are discovering the time and cost savings of delivering bulk box seed to the field and planter, and with the new Seed Chariot model 1020 bulk box tender you'll save time and money.  Available with either auger or conveyor unloading, the Seed Chariot bulk box tender is perfect for any operation.

    Features

    Features

    • 2 seed box with capactiy of approximately 100 seed units
    • Easy-opening 5" x 6" door with rubber funnel regulates seed flow into conveyor or auger
    • Powered by a 160 cc (4.8 HP) Honda® gas engine with electric start and centrifugal clutch direct-drive system for the quickest response.
    • 180° swing on conveyor or auger
    • Unloading chute feeds conveyor/auger from a central point for greater unloading efficiency

    Conveyor

    • Conveyor features a 6" tube with an 8" cleated belt to gently carry seed at speeds up to 12 bushels per minute, respectively
    • Patented brush seal on conveyor inlet prevents seed from back-feeding
    • Removable bottom door on conveyor allows for complete cleanout
    • Conveyor locks into the transport position at either front or back

    Auger

    • The poly cupped auger flighting gently carries seed at speeds up to 10 bushels per minute
    • 18' steel tube with 4'-6' telescoping downspout can reach up to 30'
    • Auger speed is regulated by engine speed

    Undercarriage

    • Undercarriage features heavy steel construction, rubber-cushioned suspension, tandem axles with electric brakes, highway-rated tires, lights, reflectors, 2 5/16" ball hitch and transport chains
    • Two part urethane enamel finish on carrier with all seams silicone sealed for a rugged, long-lasting finish
    • Undercarriage, conveyor/auger and other parts are powder-coated in a contrasting midnight gray

    Accessories

    • Electronic Scale Package with large screen for easy viewing
    • T&G Applicator mounts to conveyor/auger intake for talc and other seed fluency agents
      • Flow-control electric dial for easy rate adjustment
      • Internal agitator keeps talc flowing
    • Spare tire package
    • 10' three-stage telescopic downspout for additional reach and filling convenience
    • Gooseneck hitch
    • Electronic lift/lower for auger/conveyor (over 4' of height adjustment)
    • 2-Function Wireless Remote controls conveyor on/off and when equipped with optional electric winch also controls raise and lower.  Includes wrist strap for easier control.

    • Pintle or clevis hitch
