54-Series Double Auger Grain Carts

54-Series Double Auger Grain Carts

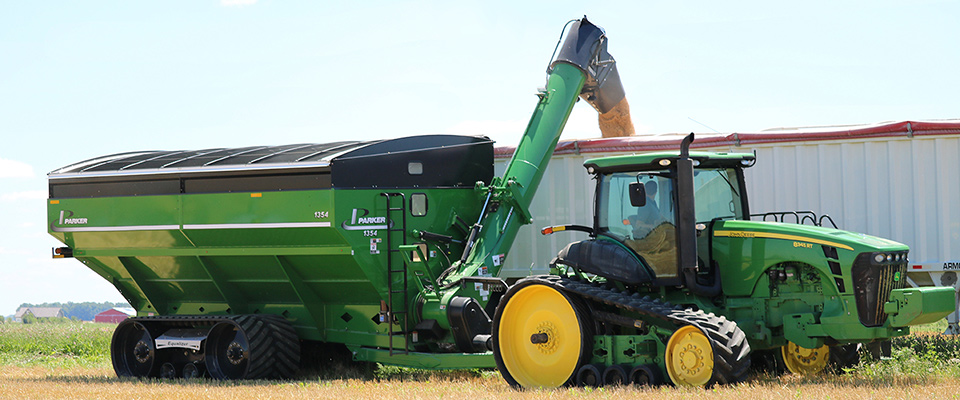

Parker 54-Series double auger grain carts are true workhorses wtih lightning fast unloading, large carrying capacities and now an adjustable vertical auger for added unloading versatility!  The double auger system in these grain carts features a horizontal floor auger that feeds a vertical unloading auger which ensures the fastest unloading while keeping a lower overall tank profile for in-field stability.  Models 1154, 1354 and 1654 feature tank capacities of 1100, 1300 and 1600 bushels with unloading speeds up to 850 bushels per minute.  Undercarriage options, depending on model, include high-flotation single wheels and tires, walking tandem duals, in-line fixed tandems, traditional 36" wide tracks and the exclusive 42" wide Equalizer tracks for the greatest flotation.  If you need a workhorse on your farm, trust the Parker 54-Series lineup of double auger grain carts!

    Auger

    Sensible Double-Auger Design

    Augers

    • The 20" diameter horizontal floor auger feeds the 22" vertical auger for unloading speeds up to 850 bushels per minute
    • Exclusive, full-length Extended Wear auger flighting manufactured of high-grade steel with a 7/16" thick outer edge for maximum life
    • Electronic balancing of the upper and lower augers provide longer-life and smooth operation at all speeds
    • Patented self-aligning auger mechanism ensures smooth engagement of the upper and lower auger sections
    • Adjustable vertical unloading auger pivots from 16' 6" to 10' 6" in height, which allows the operator to lower the auger to the truck when unloading and raise the auger when pulling away
      • Adjust auger reach up to 8' 11" from the cart for precise grain placement without repositioning the grain cart
    • The unloading auger fits completely within the cart's width for transport and storage ease
    • Easy-to-operate auger stand provides in-field position for auger, resulting in quicker raising and lowering
    • Dual L.E.D. vertical auger spotlights automatically turn on when the auger is unfolded for easier night time unloading
    • The vertical auger's hinged cleanout door features tool free access which allows for convenient pit dumping and cleanout

    Downspout

    • Standard bi-directional downspout allows you to easily move the downspout in-and-out for precise grain placement
      • An optional pistol-grip joystick remote provides 4-way downspout operation which allows the operator to move the downspout left/right and in/out for easily topping off trucks
      • The optional joystick also controls the auger pivot up/down, auger raise/lower and flow door open/close

    Drivetrain

    • The exclusive drivetrain design on Parker double auger grain carts combines a belt drive for the 20" horizontal auger and a heavy-duty direct-drive 90-degree gearbox for the vertical auger
    • Belt-drive features dual, four-strand belts and dual spring-loaded tensioners for long life and easy maintenance
    • Floor auger can be manually disengaged if needed
    • Quick-couple 1000 RPM P.T.O. shaft with overrunning friction clutch helps protect driveline

    Tank

    Workhorse Carrying Capacities

    Tank Design

    • Large carrying capacities of 1100, 1300 and 1600 bushels to meet your operation's needs
    • The 54-Series double auger grain cart design allows the tank to have a low profile and lower center of gravity for in-field stability and easy combine unloading
    • The steep floor slopes, graphite-coated interior and recessed floor auger intake provide quick and clean unloading
    • Standard, 16" hydraulic flow-control gates over the floor auger allow the operator to meter the grain flow
    • Rear, single-point opening floor auger panels permit easy clean out between crops
    • Three front and one rear shatterproof windows, front viewing ladder and high-intensity L.E.D. spotlight mounted inside the tank make for convenient load checking
    • The exclusive manufacturing process crimps sides for added strength and a sleek appearance
    • Exposed seams are silicone sealed for corrosion resistance
    • Flashing L.E.D. amber and red taillights with SMV sign and transport chains for safe road transport
    • Durable top coat of high-grade enamel paint is baked on in tractor red or green for a smooth, automotive-like finish

    Weatherguard Tarp

    • All 54-Series double-auger grain carts come standard with a rollover tarp for protecting load contents
    • Custom-design offers the fit, appearance and ease of operation that Parker customers expect
    • Low-profile tarp bows are reinforced to eliminate sagging and the heavy-duty, 18 oz. black canvas provides longer life
    • Semi trailer locking design for optimum protection from high wind and moisture

    Undercarriage

    Durability & Reliability

    Frame

    • Tubular steel mainframe, 12-gauge steel shell, reinforced gusset wheel hub design and special alloy, stress-proof spindles contribute to the durability of the grain cart
    • Cast 2" single tang hitch with smooth chamfer opening and bushings that fit numerous hitch pin sizes for smooth trailability
    • Heavy-duty 12,000 lb. drop-leg jack for safer storage and standard transport chains for added safety

    In-Line Fixed Tandems

    • Available on model 1654
    • Oscillating in-line tandems are fixed for an economical design that provides high-flotation for reduced compaction
    • 12-bolt hubs, heavy-duty frame structure and 900/60x32 tires ensure long-term trouble-free use

    High-Flotation Single

    • Available on 1154 and 1354 double auger models
    • Choose 76-50.00x32 or 1250/50x32 on models 1154 and 1354 or 35.5x32 or 1050/50x32 tires on model 1154 only

    Walking Tandem Duals

    • Available on 1154 and 1354 double auger models
    • Innovative design allows the cart to trail easily through the field and features independent operation from front to rear, allowing the cart to "walk" over obstacles
    • Can be adjusted for 30" or 36" row spacings
    • The entire wheel assembly swings out for easier tire/wheel maintenance

    Equalizer™ Track Systems

    • 42" wide industry-exclusive rubber track belt for the greatest compaction-reducing undercarriage and is molded as 1 piece for the greatest strength and durability!
    • Patented design features 8° of side-to-side camber and 20° of front-to-back pivot with independent movement of each track to provide uniform ground contact on uneven terrain for optimum flotation
    • Available on 1354 and 1654 double auger grain cart models:
      • 42" wide rubber track with 105" of ground contact length provides a footprint greater than 60 square feet!
      • Four cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation
    • Available on 1154 and 1354 double auger models:
      • 42" wide rubber track with 87" of ground contact length provides a footprint of over 50 square feet!
      • Two cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation
    • Shallow tread belt design for greater flotation and traction
    • 40" main end-wheels feature 10-bolt hubs for added durability
    • All end-wheels and mid-rollers feature hubs that are greaseable and triple-lip seals with a steel guard for optimum lubrication
    • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution
    • Standard auto-greaser system for automatic application at more frequent intervals for consistent lubrication

    Traditional Track System

    • Exclusive 36" rubber track belt is molded as 1 piece for maximum strength and durability
    • 40" main end-wheels feature 10-bolt hubs for added durability
    • All end-wheels and mid-rollers feature hubs that are greaseable and triple-lip seals with a steel guard for optimum lubrication
    • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution
    • Available on all 54-Series models:
      • 36" wide rubber track with 105" of ground contact length
      • Four cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation
    • Available on model 1154:
      • 36" wide rubber track with 90" of ground contact length
      • Two cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation

    Economical Track Option

    • Available on model 1154 with a 36" wide rubber track belt that is molded as 1 piece for the greatest strength and durability
    • 32" main end-wheels feature 8-bolt hubs for added durability
    • Two cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and give the track 75" of ground contact length
    • All end-wheels and mid-rollers feature hubs that are greaseable and triple-lip seals with a steel guard for optimum lubrication
    • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution

    UHarvest

    UHARVEST PRO GRAIN CART SCALE

    Your complete ISOBUS grain cart scale and harvest data solution!  By utilizing ISOBUS technology, the user can operate the UHarvest® Pro grain cart scale and data management system on the virtual terminal display in the tractor, eliminating the need for batteries and extra monitors in the cab.  Simply plug into the ISOBUS port and you’re ready to go!  With a free subscription to Slingshot® reporting, you have a complete data management solution that seamlessly integrates with most crop insurance requirements.  Need to send your data to the cloud?  Simply connect your mobile device with cellular data to the Bluetooth signal and open the free UHarvest Pro app to make it happen!

    Standard Features

    • The UHarvest Pro grain cart scale and data management system works on any ISOBUS Virtual Terminal display. The easy-to-use platform permits easy setup and operation directly from a monitor that you already have in the tractor cab.  No need for additional monitors, cabling or batteries!
    • The harvest data structure allows you to track each load using a grower, farm and field structure as well as truck, destination and crop variety for complete harvest data reporting.
    • Easily add up to 5 custom crop types along with the included crop types. Plus, with UHarvest Pro, you can setup truck and bin capacities to help monitor your harvest production and storage requirements.
    • Accu-Save automatically records loads using the proximity sensor mounted on the driveshaft of the grain cart for the most accurate and complete harvest record keeping possible.
    • Hitch weight management feature allows the operator to maintain optimum tractor and cart control by keeping the grain load evenly distributed.  This feature not only monitors grain and total cart weight, it also shows real-time hitch weight and a color gauge to avoid overloading the hitch during loading.
    • Use the Combine Verify screen to easily calibrate the combine yield monitor with one touch. This calibration event is saved in the UHarvest Pro system once the verification process is completed.
    • Slingshot cloud reporting is included with every purchase of the UHarvest Pro grain cart scale system.  Slingshot is a secure, first-of-its-kind, web-based system that lets you send, store and share your harvest data.  Using the free UHarvest Pro mobile app, you can easily send files from the field on a mobile device with cellular connection to your Slingshot account.
    • The free UHarvest Pro mobile app allows you to send your harvest data to Slingshot directly from the field.  Once you have connected your mobile device to the Bluetooth connection provided by the GCM, launch the app and you're ready to go.  Upload once a day or once a season. It's easy to use and completely up to you! (available on IOS and Android devices).

    Optional Features

    • The optional Accu-Load technology provides quick and easy loading of trucks by closing the grain cart’s flow gate when the desired weight is unloaded.  After you’ve installed the HCV (hydraulic control valve) on the cart, simply push the “Auto” button for precise weight unloading.  Each truck weight is matched to the truck name for easier operation.  The operator can then focus on topping off each truck and proper grain placement.
    • Want to easily send a report to your crop insurance agent that includes the actual dry bushel count? Consider it done with the optional Moisture Sense system. It measures grain moisture as it leaves the cart and averages the content of each load, then converts all grain unloaded to standard dry bushels for the ultimate in harvest record keeping.

    Visit uharvest.net for complete information pertaining to the UHarvest Pro grain cart scale and data management system.

    Options

    Scale Packages

    • UHarvest Pro ISOBUS Grain Cart Scale & Data Management Solution
      • Please refer to the UHarvest tab or uharvest.net for more information
    • Model 520 Scale Package
      • Features auto-log and the patent-pending start/stop button for ease of use
      • The large, multi-line display features an alpha-numeric keyboard for easily editing or changing fields
      • Combine check button can help calibrate the the combine's yield monitor, accumulation of weights per field entry and the ability to store 1 year's worth of harvest data in the monitor's memory
      • Comes with PC software and a 1GB USB flash drive to easily download your harvest information to your computer in Excel or PDF format
    • Model 410 Scale Package
      • Scale display specifically designed for ease of use with the patent-pending start/stop button
      • Assign, view and change six character field information and accumulate weights within a field
      • Optional printer is required for record keeping
    • Remote scale display for the 520 and 410 scale indicators features a 4" x 18" LED screen that can be mounted to the side of the grain cart for easy viewing of the loaded weight of the grain cart

    Pistol Grip Remote

    • Five-function pistol grip remote control operates downspout left/right, downspout in/out, auger pivot up/down, flow door open/close and the auger fold/unfold functions

    Color Camera

    • 7" color, 12V monitor which mounts in the tractor cab
    • Sideboard mounted, weather-proof camera to monitor the unloading auger
    • Optional second color camera views rear traffic during transport

    Other Accessories

    • Hydraulic jack operation for quick and easy hookup to the tractor on models 1354 and 1654
    • Auto-Greaser for Tracked Undercarriages reduces your daily maintenance on track undercarriages by automatically delivering small amounts of grease to each pivoting joint at more frequent intervals
      • Powered by an electric grease pump with a 2-liter grease reservoir and programmable grease intervals
    • Electric operation of the weatherguard roll tarp provides in-cab operational convenience

    Specs

    Specification Model 1654 Model 1354 Model 1154
    Loaded Tire Ground Pressure - P.S.I. calculated at the 3" penetration level.
    For use as a comparative guide in choosing between various tire options.
    Capacity (bushels) 1600 1300 1,100
    Engine H.P. 300 250 225
    Loaded Tongue Weight (lbs) 5500 5400 5200
    Empty Tongue Weight (lbs) 4000 3550 3400
    Auger Diameters (vertical/horizontal) 22" / 20" 22" / 20" 22" / 20"
    Unload Speed (bu./minute). 850 850 850
    Flighting Thickness 7/16" 7/16" 7/16"
    Hub Size / Spindle Diameter - 12-bolt / 6" 10-bolt / 4 1/2"
    Hydraulic Remotes Required 4 4 4
    Hopper Length 25' 4" 22' 22'
    Hopper Width 11' 10" 11' 10" 11' 10"
    Auger Side Reach Max - measured to inside edge of spout 8' 5" 9' 1" 9' 1"
    Auger Side Reach Min - measured to inside edge of spout 5' 1" 3' 4" 3' 4"
    Overall Transport Length 34' 2" 30' 10" 30' 10"
    Hitch to Center of Axle

    21' 10" Track

    18' Front Tandem

    20' 4" Single

    19' 3" Front Tandem

    20' 3" Single

    19' 3" Front Tandem

    Single Wheels and Tires
    Measured Undercarriage - 1250/50x32 Tire 1050/50x32 Tire
    Empty Weight (lbs) - 20860 18960
    Hitch Height - 2' 1' 8"
    Hopper Height Low Side - 11' 11" 10' 9"
    Hopper Height High Side - 12' 11" 11' 9"
    Auger Height with Spout Straight Down - Adj. 15'3" - 10' 3" Adj. 15'3" - 10' 3"
    Height to Top of Auger in Unload Position - Adj. 20' 6" - 15' 6" Adj. 20' 6" - 15' 6"
    Width Outside of Tires - 14' 1" 13' 3"
    Center of Tire to Center of Tire - 9' 10" 10'
    Under Frame Clearance - 1' 7" 1' 4"
    Walking Tandem Dual Wheels and Tires
    Measured Undercarriage - 650/65x42 Tires 520/85x42 Tires
    Empty Weight (lbs) - 23000 22780
    Hitch Height - 1' 8" 1' 8"
    Hopper Height Low Side - 11' 7" 10' 7"
    Hopper Height High Side - 12' 6" 11' 6"
    Auger Height with Spout Straight Down - Adj. 15' 3" - 10' 3" Adj. 15' 3" - 10' 3"
    Height to Top of Auger in Unload Position - Adj. 20' 6" - 15' 6" Adj. 20' 6" - 15' 6"
    Width Outside of Tires - 14' 8" 13' 10"
    Center of Tire to Center of Tire Inner Dual   5' 9" 6' 2"
    Under Frame Clearance - 1' 7" 1' 7"
    Center of Tire to Center of Tire Outer Dual - 12' 7" 12' 7"
    Hitch to Center of Tire Rear Dual - 21' 4" 21' 4"
    In-Line Fixed Tandem Dual Wheels and Tires
    Measured Undercarriage 900/60x32 Tires - -
    Empty Weight (lbs) 27340 - -
    Hitch Height 1' 5" - -
    Hopper Height Low Side 11' 1" - -
    Hopper Height High Side 12' 1" - -
    Auger Height with Spout Straight Down Adj. 15' 3" - 10' 3" - -
    Height to Top of Auger in Unload Position Adj. 20' 9" - 15' 8" - -
    Width Outside of Tires 14' 6" - -
    Center of Tire to Center of Tire 11'
    Under Frame Clearance 1' 3" - -
    Hitch to Center of Tire Rear Dual 25' 2 1/2" - -
    Tracks
    Measured Undercarriage 36"x148" Tracks 36"x148" Tracks 36"x131" Tracks
    Empty Weight (lbs) 28560 28240

    25520

    Hitch Height 1' 5" 1' 4" 1' 4"
    Hopper Height Low Side 11' 11' 2" 10' 4"
    Hopper Height High Side 12' 12' 2" 11' 4"
    Auger Height with Spout Straight Down Adj. 15' - 10' Adj. 15' - 10' Adj. 15' - 10'
    Height to Top of Auger in Unload Position Adj. 20' 10" - 16' 1" Adj. 20' 10" - 16' 1" Adj. 20' 10" - 16' 1"
    Width Outside of Tracks 11' 10" 12' 3" 12' 1"
    Center of Track to Center of Track 9' 1" 9' 4" 8' 5"
    Under Frame Clearance 1' 2" 11" 11"
    Bushel capacities were measured with #2 corn at 15% moisture (56 lb test weight)
    Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
    Loaded Tire Ground PSI Chart
    Undercarriage Model 1654 Model 1354 Model 1154
    42"x148" Equalizer Tracks 13.09 11.05
    42"x131" Equalizer Tracks   13.04 11.47
    36"x148" Traditional Tracks 14.98 12.60 11.09
    36"x131" Traditional Tracks     13.11
    36"x112" Economical Tracks     15.58
    1050/50x32 In-Line Fixed Tandems (185A8 LI)
    900/60x32 In-Line Fixed Tandems (185A8 LI) 18.17
    520/85x38 Walking Tandem Duals (155A8 LI)     20.92
    520/85x38 Walking Tandem Duals (173A8 LI)     25.56
    520/85x42 Walking Tandem Duals (165A8 LI)   21.13 18.68
    650/65x42 Walking Tandem Duals (168A8 LI)   21.08 18.64

    IF 1250/50x32 (201A8 LI)

    IF 1250/50x32 (188A8 LI)

      16.77 14.60
    1250/50x32 Singles (188A8 LI)     16.96
    1050/50x32 Singles (178A8 LI)     21.25
    35.5x32 Singles (193A8 LI)     26.41

    Downloads
