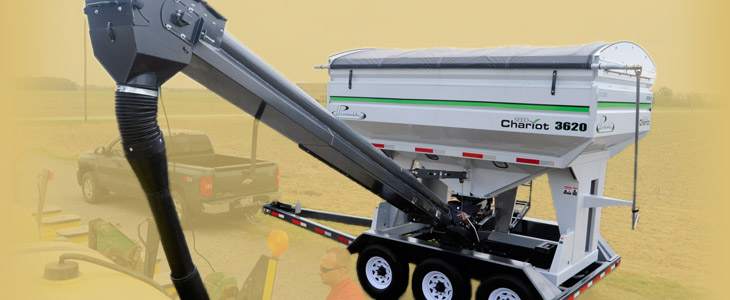

Seed Chariot Seed Tender

Seed Chariot Seed Tender

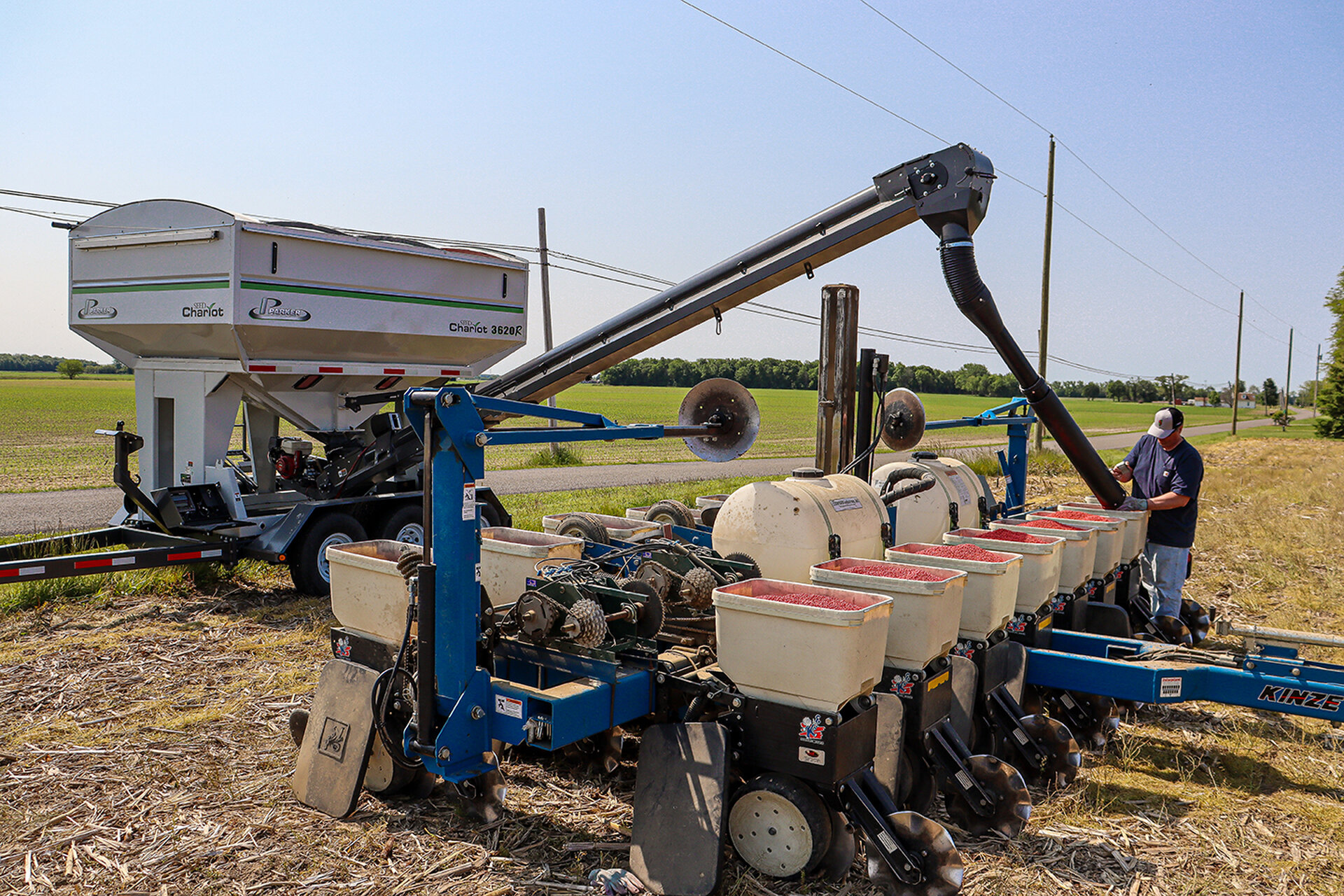

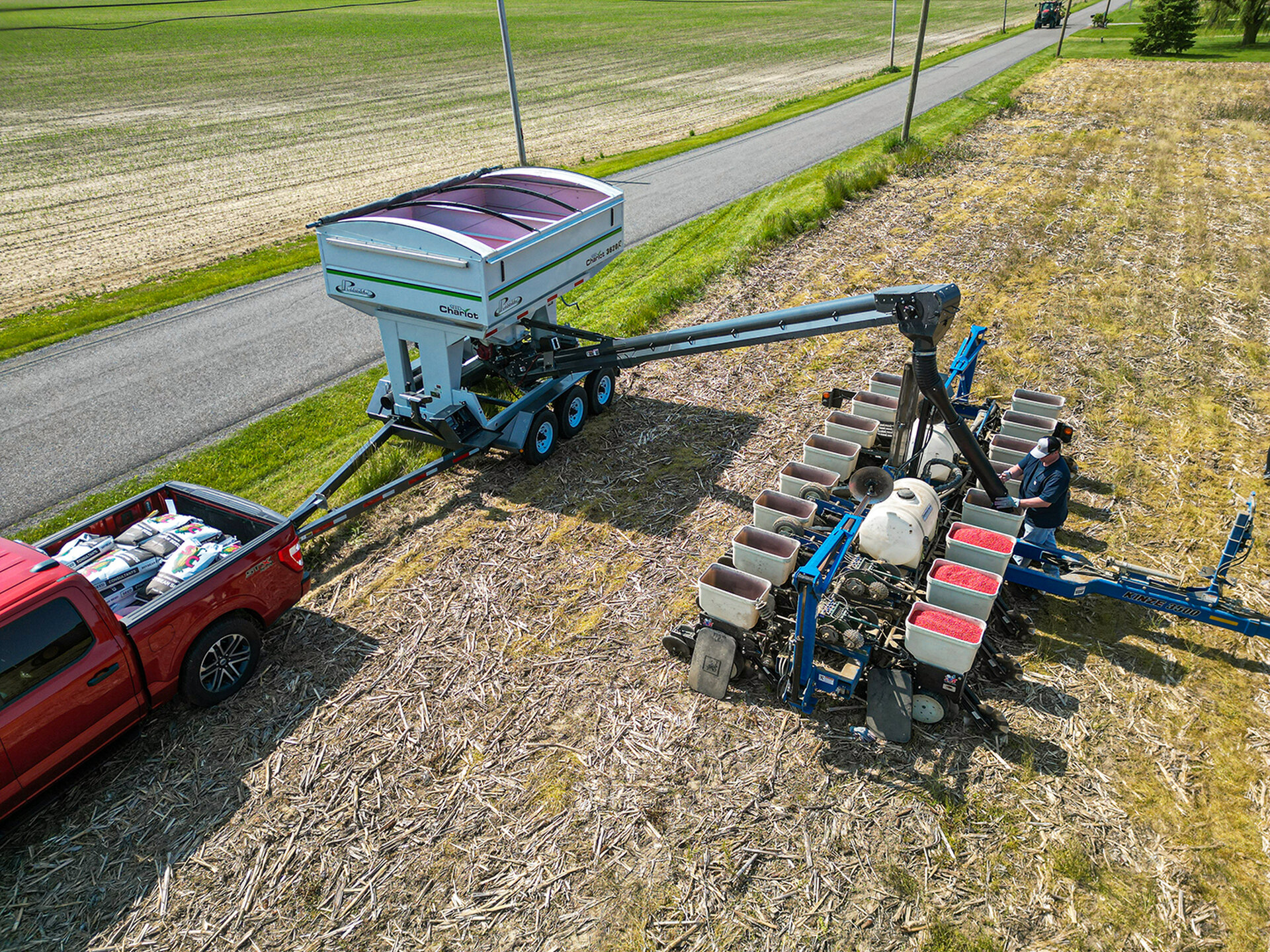

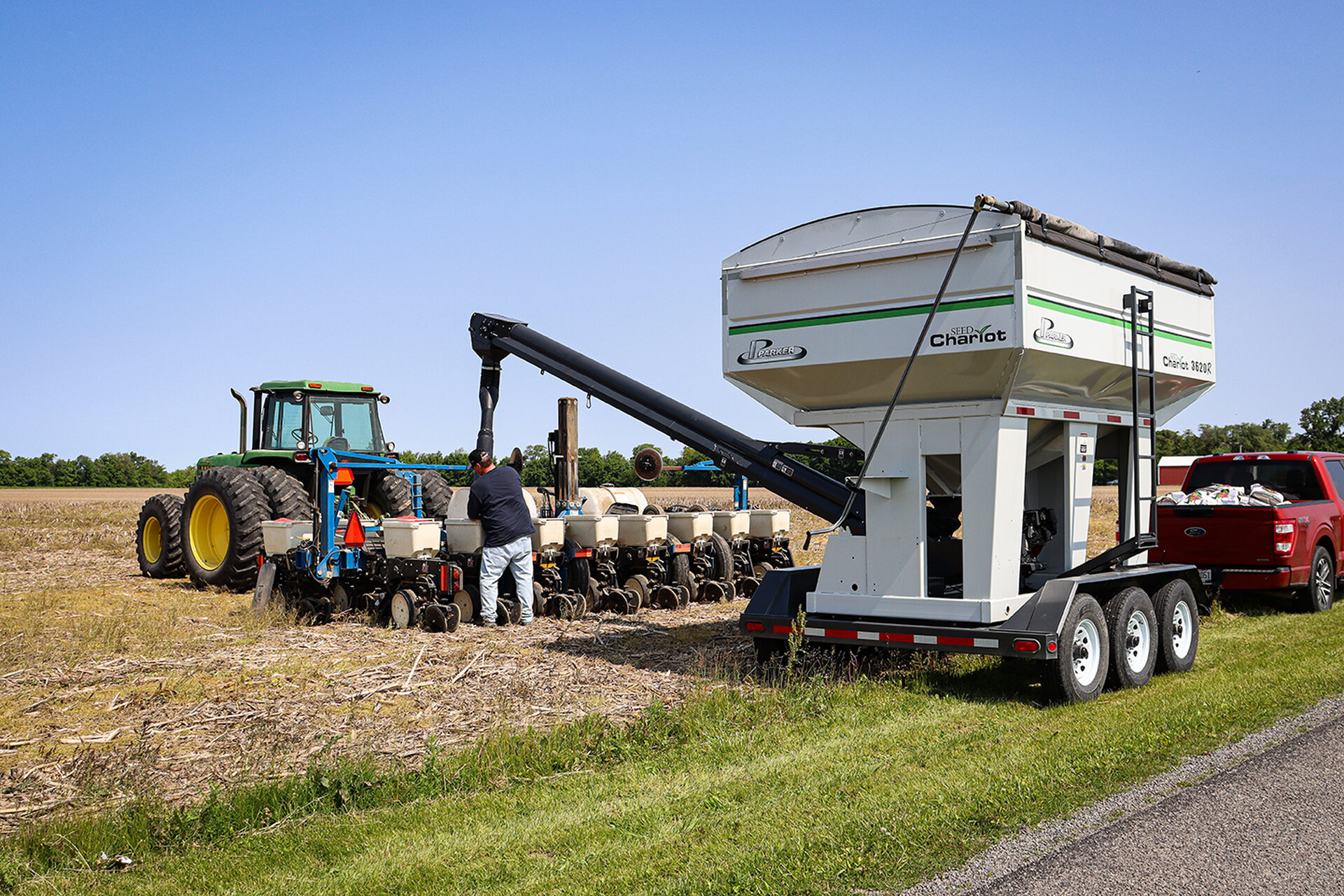

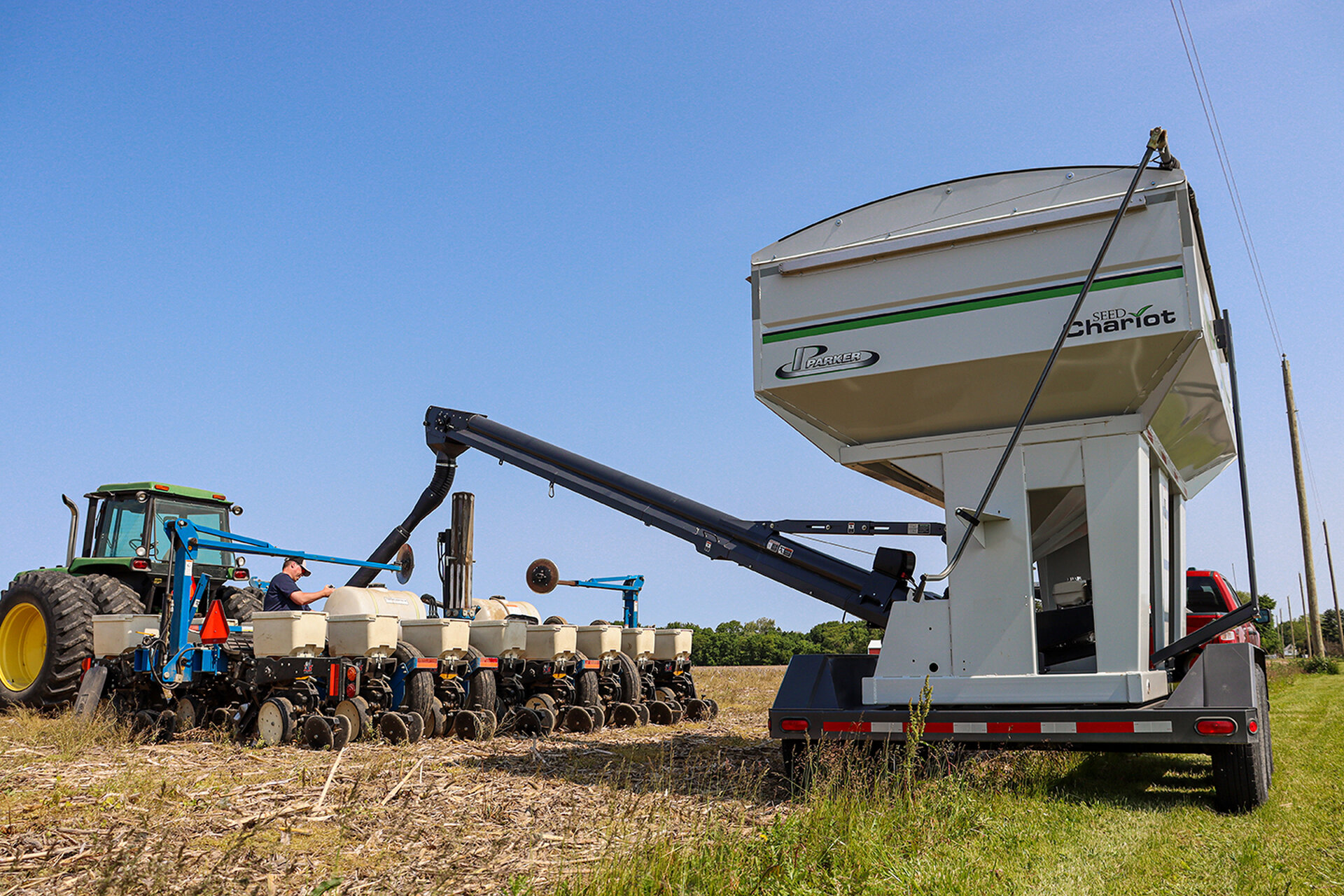

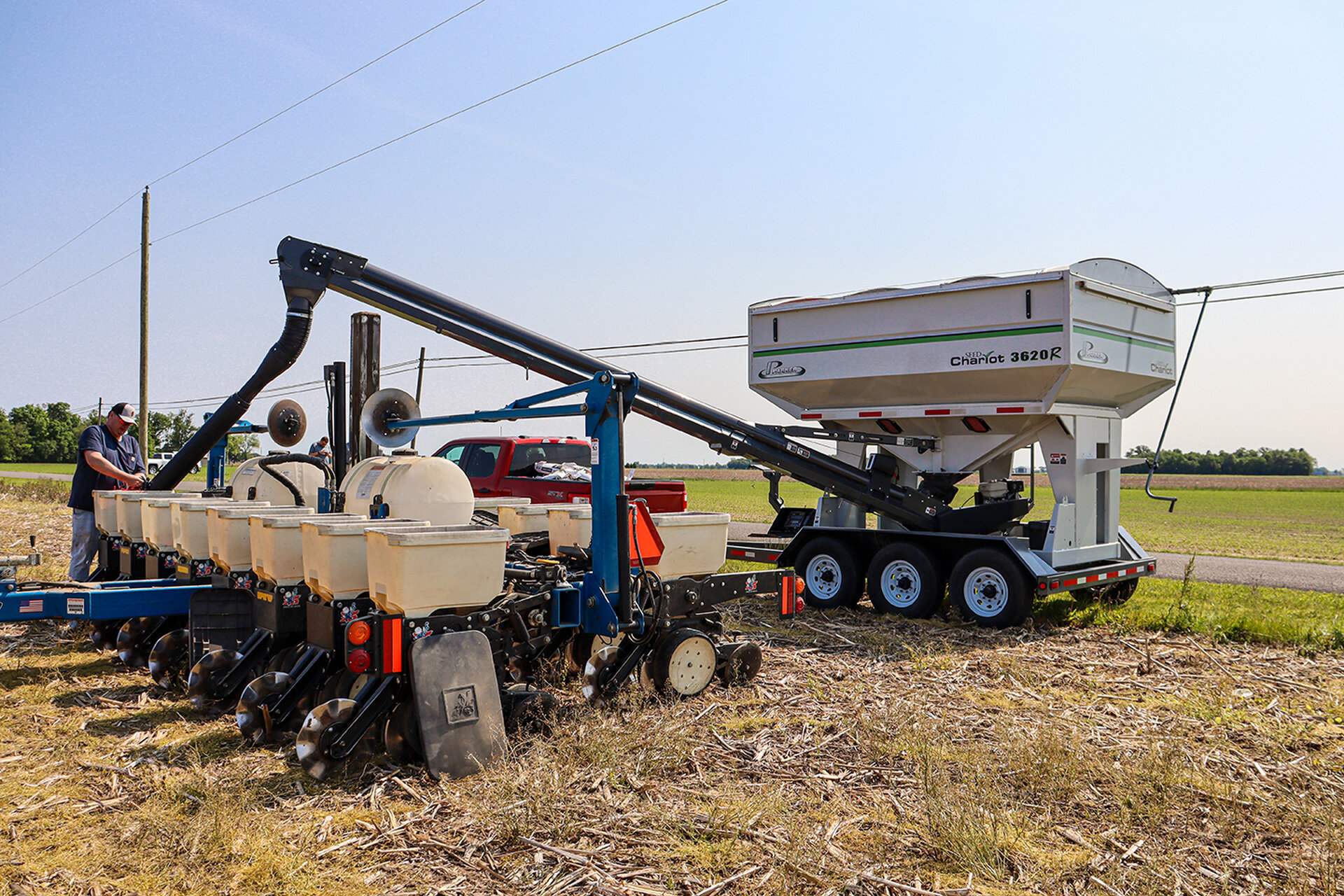

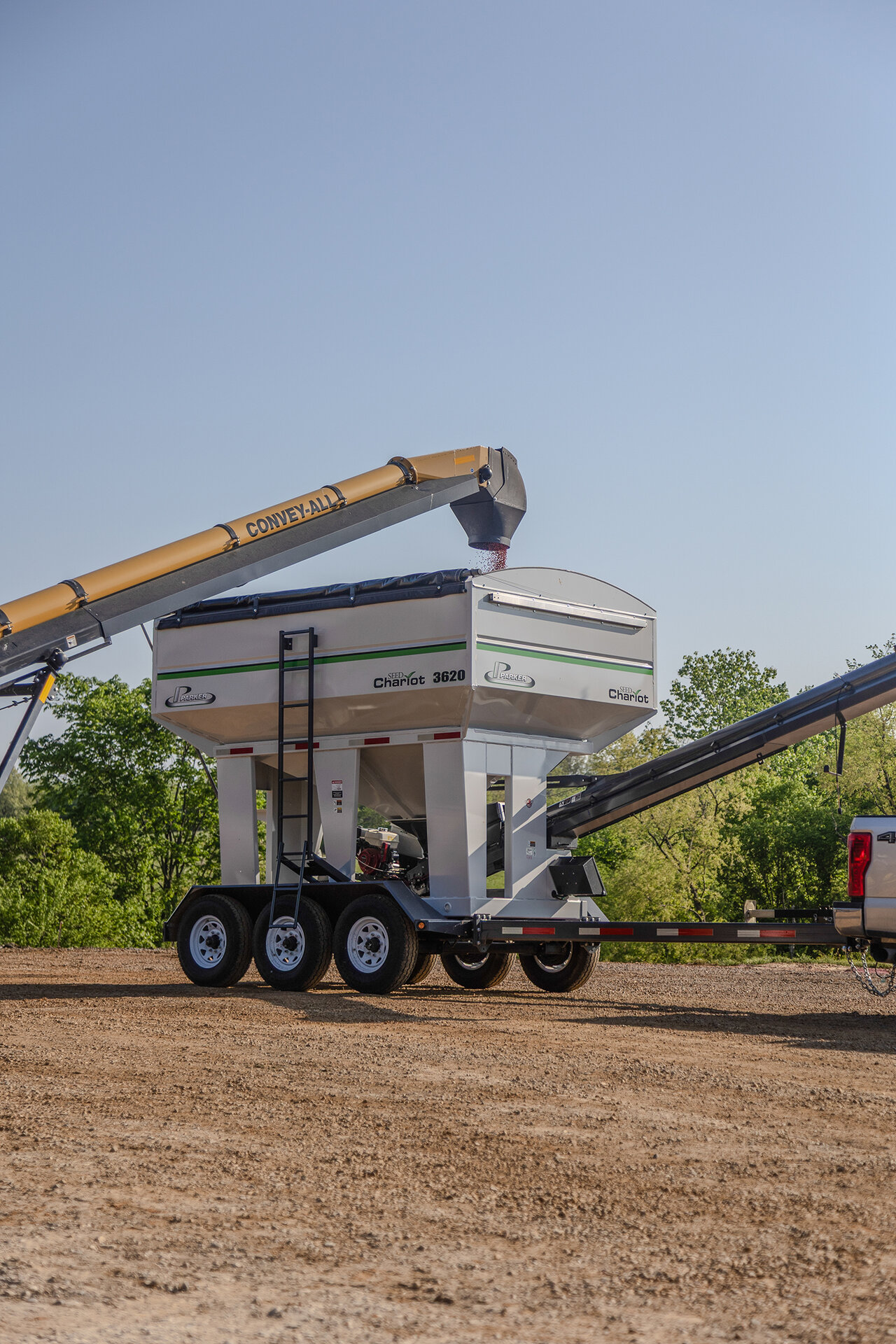

More and more growers are discovering the cost and time saving benefits of delivering seed to the field in a bulk seed-handling unit. With the operator friendly features you've come to expect from Parker such as speed, capacity, and convenience, look no further than the new Seed Chariot models 2620 and 3620 for your bulk seed delivery needs

    Features

    Hopper Box

    • Dual compartment box with 260- and 360-unit seed capacity
    • Steep-sloped sidewalls ensure fast and complete unloading
    • Standard Weatherguard roll-over tarp protects the contents from adverse weather

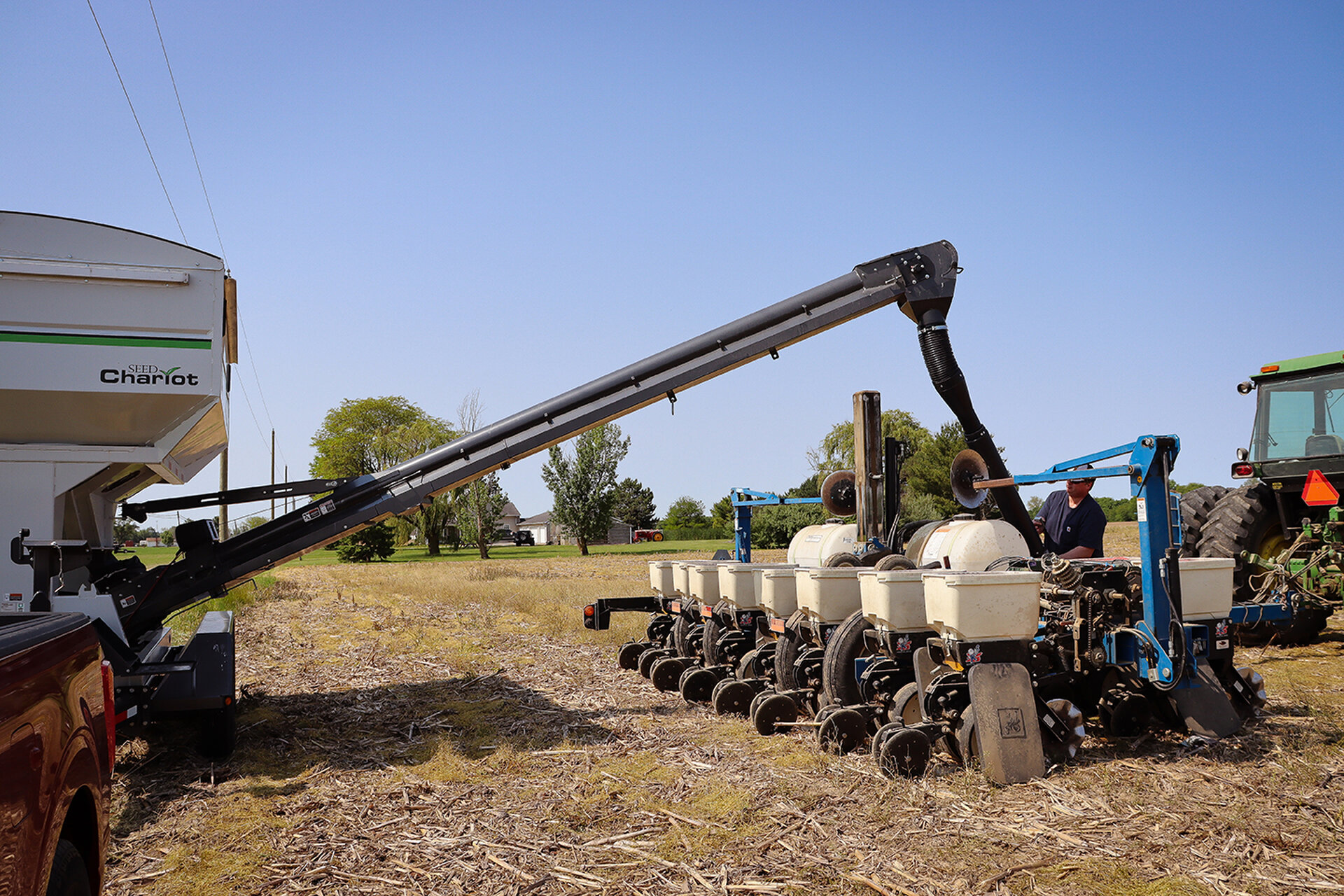

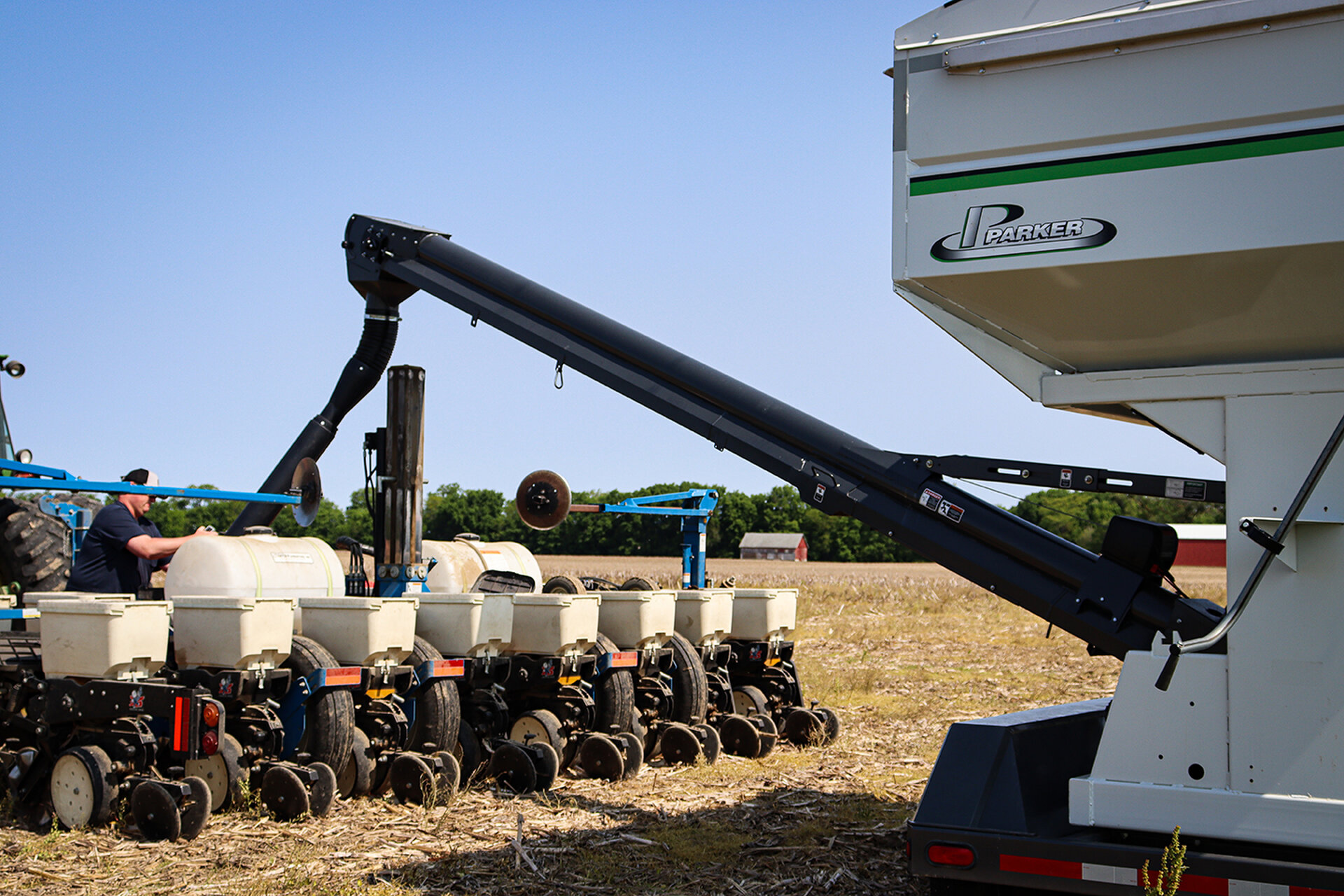

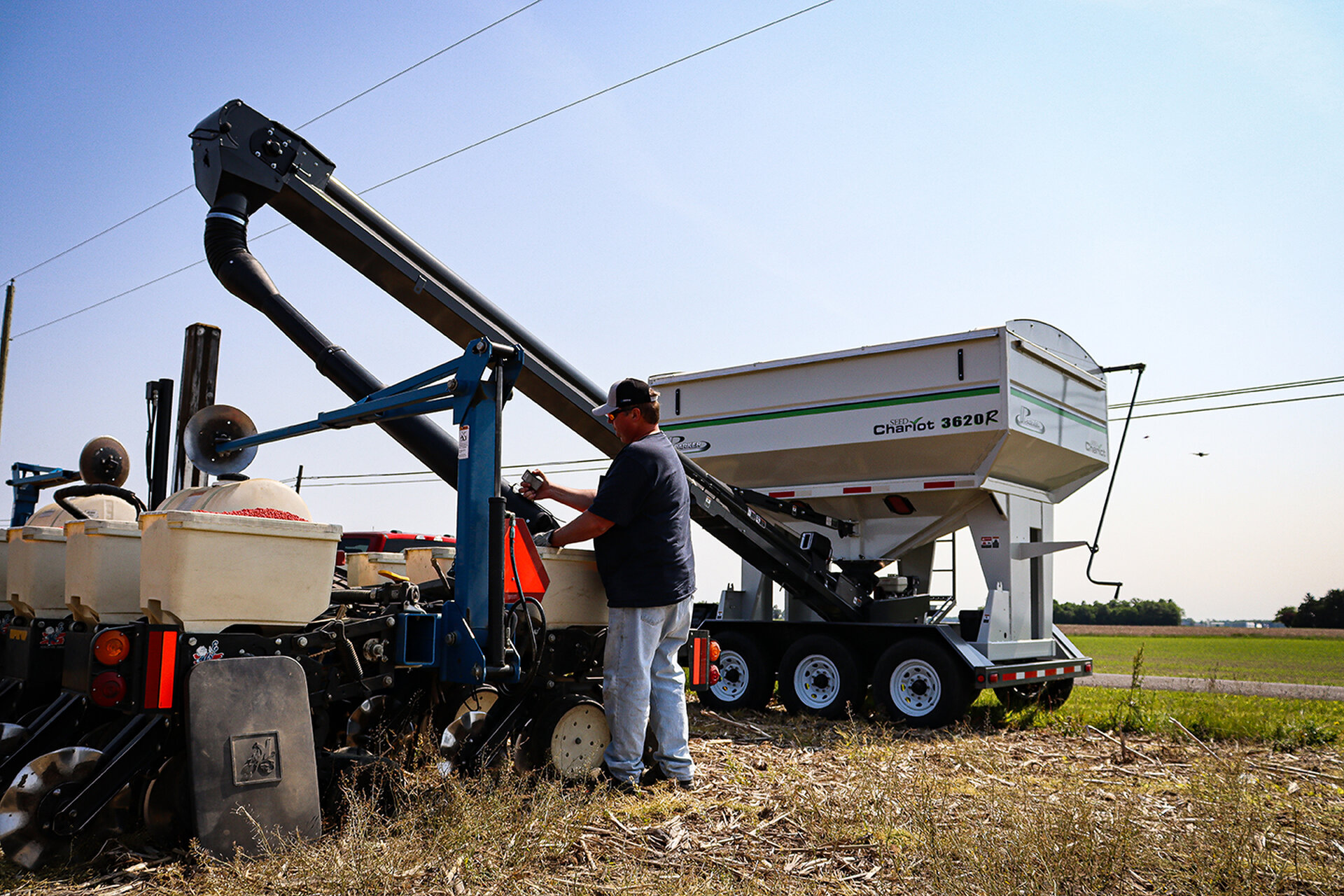

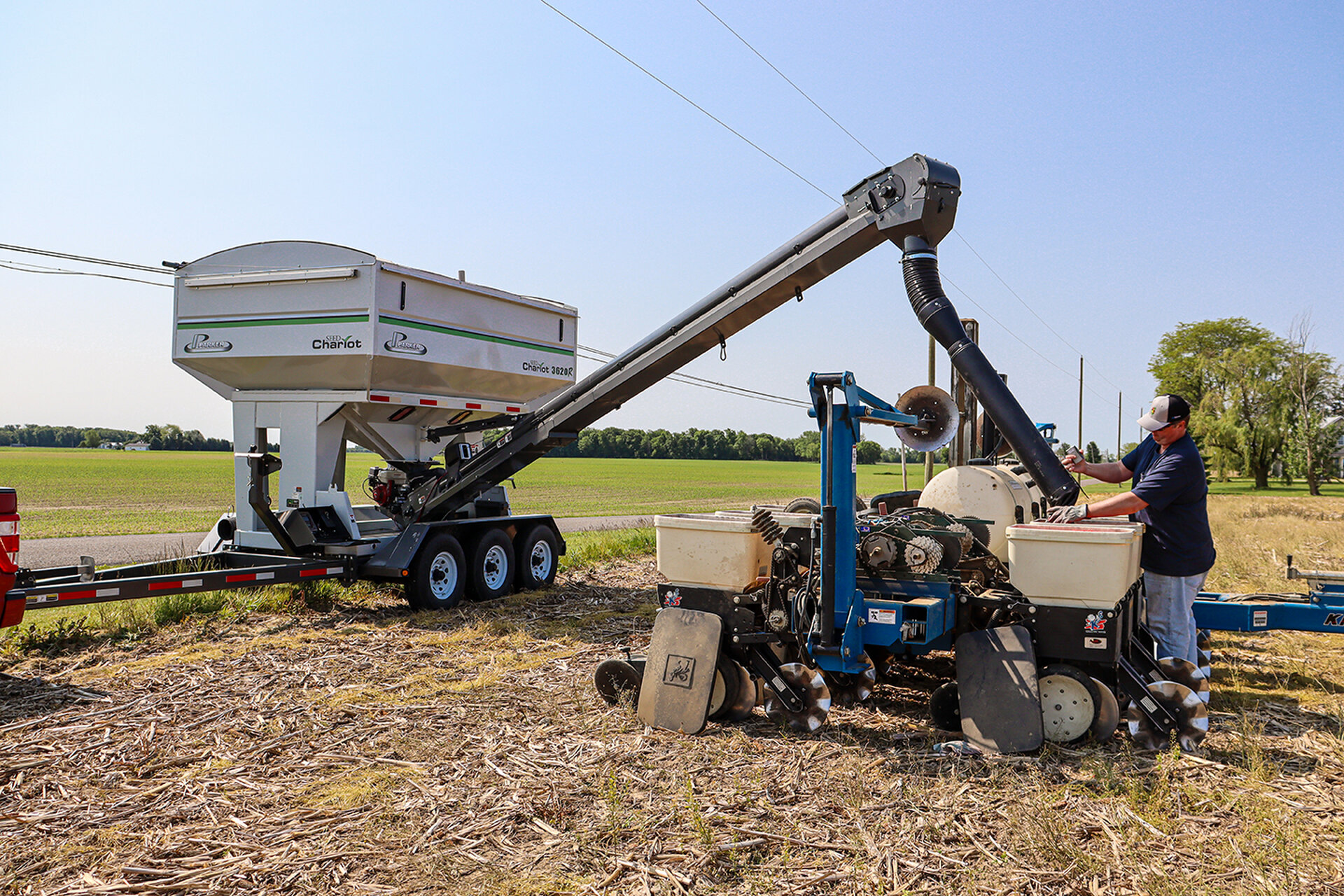

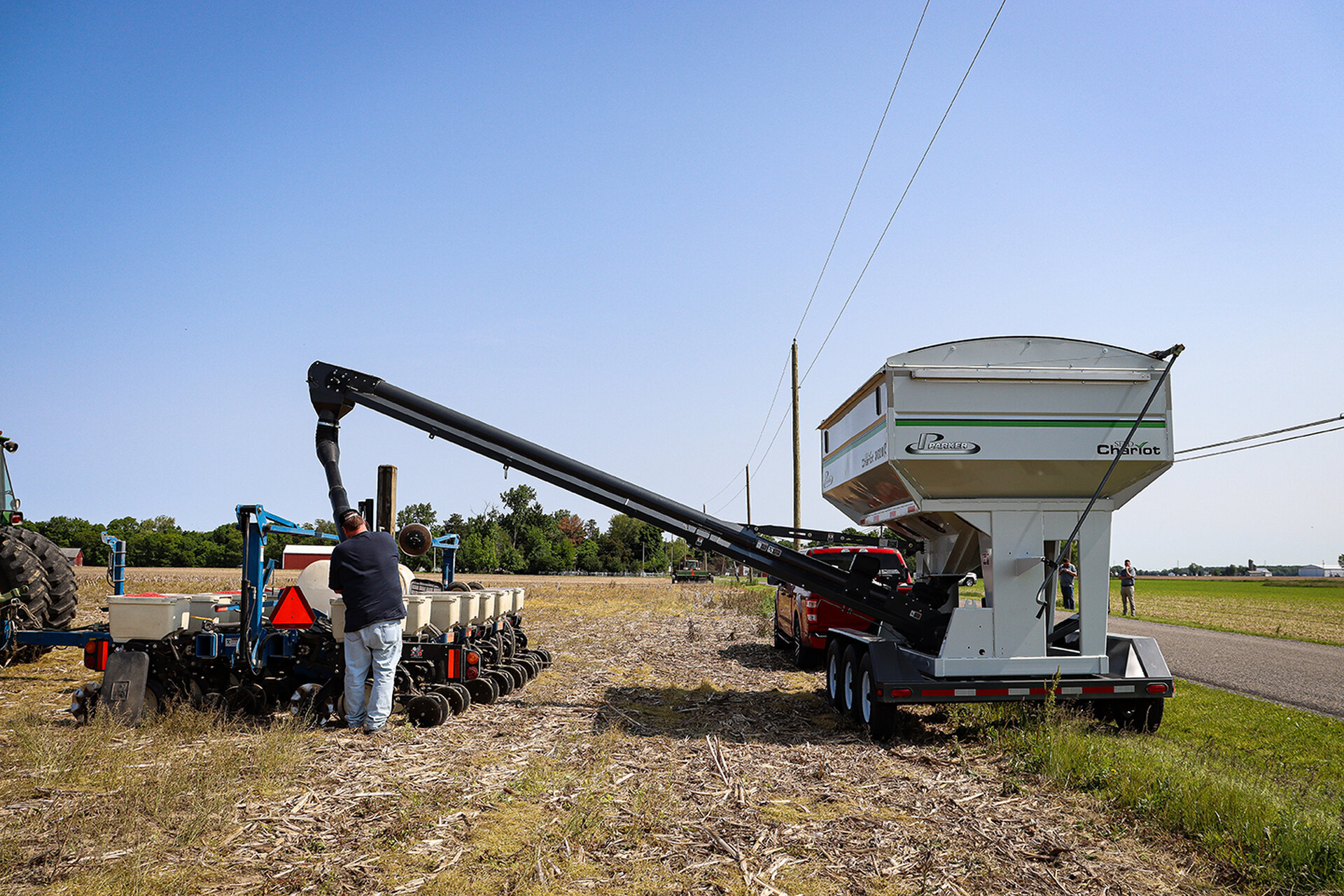

    Conveyor

    • Conveyor features a 6" tube with an 8" cleated belt or an 8" tube with a 12" cleated belt to gently carry seed at speeds up to 12 or 25 bushels per minute, respectively
    • 180° conveyor swing
    • Winch-controlled height adjustment for unloading ease
    • Models featuring a 6” conveyor or auger utilize a 160 cc (4.8 HP) Honda® gas engine while models featuring an 8” conveyor utilize a 270 cc (8.5 HP) Honda® gas engine
      • All models feature electric start and centrifugal clutch direct-drive system for the quickest response
    • Patented brush seal on conveyor inlet prevents seed from back-feeding
    • Removable bottom door on conveyor allows for complete cleanout
    • Conveyor locks into the transport position at either front or back

    Undercarriage and Transport

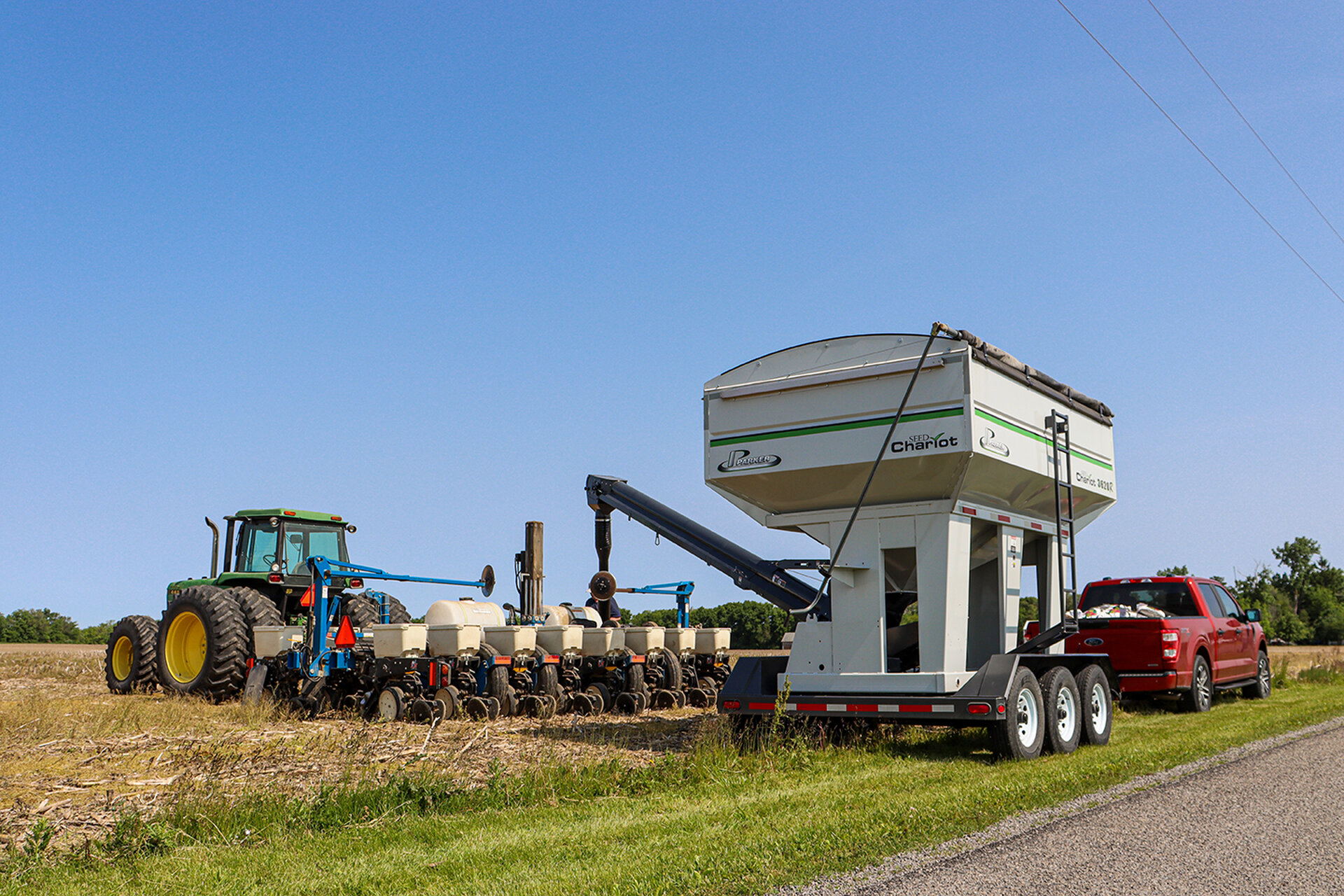

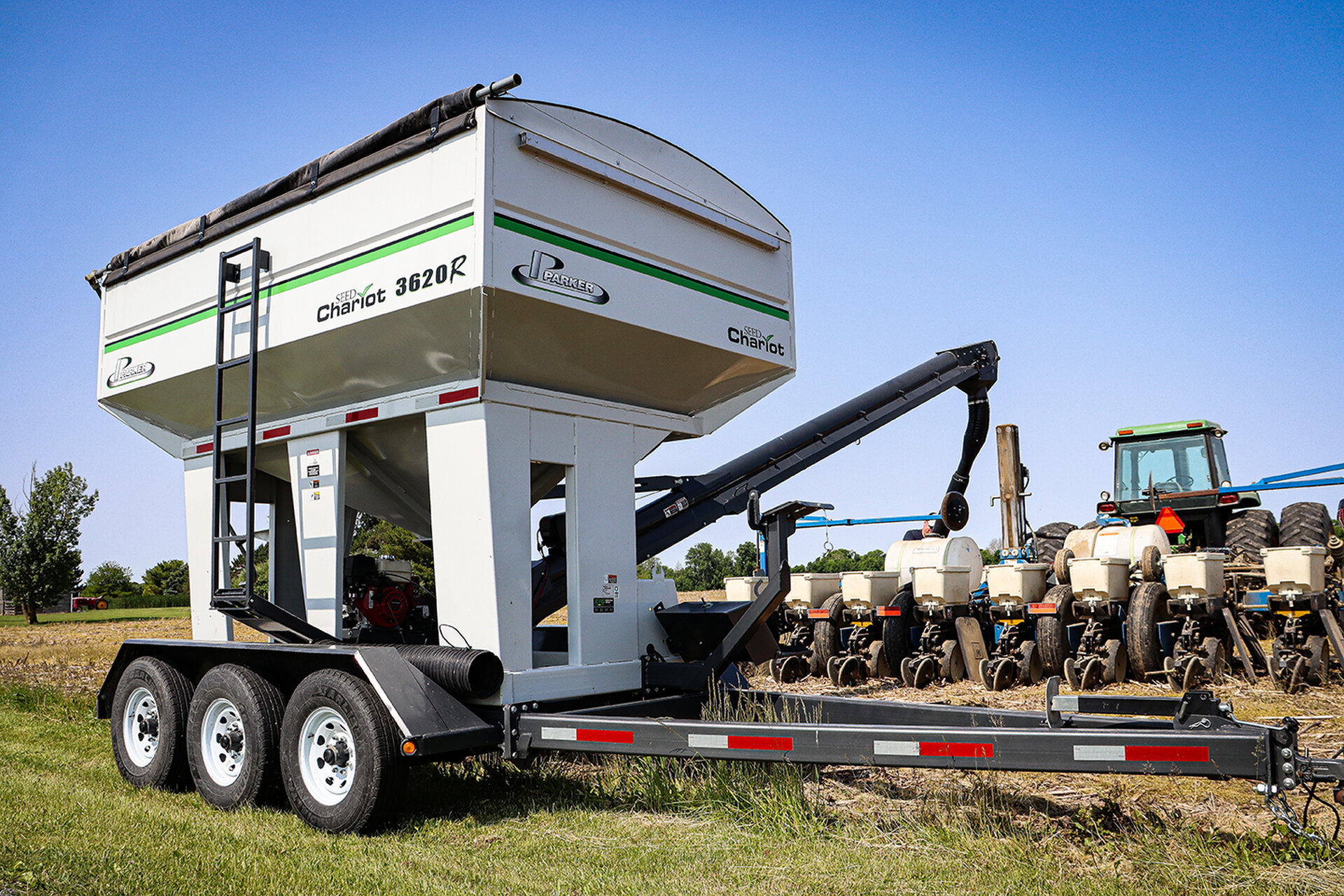

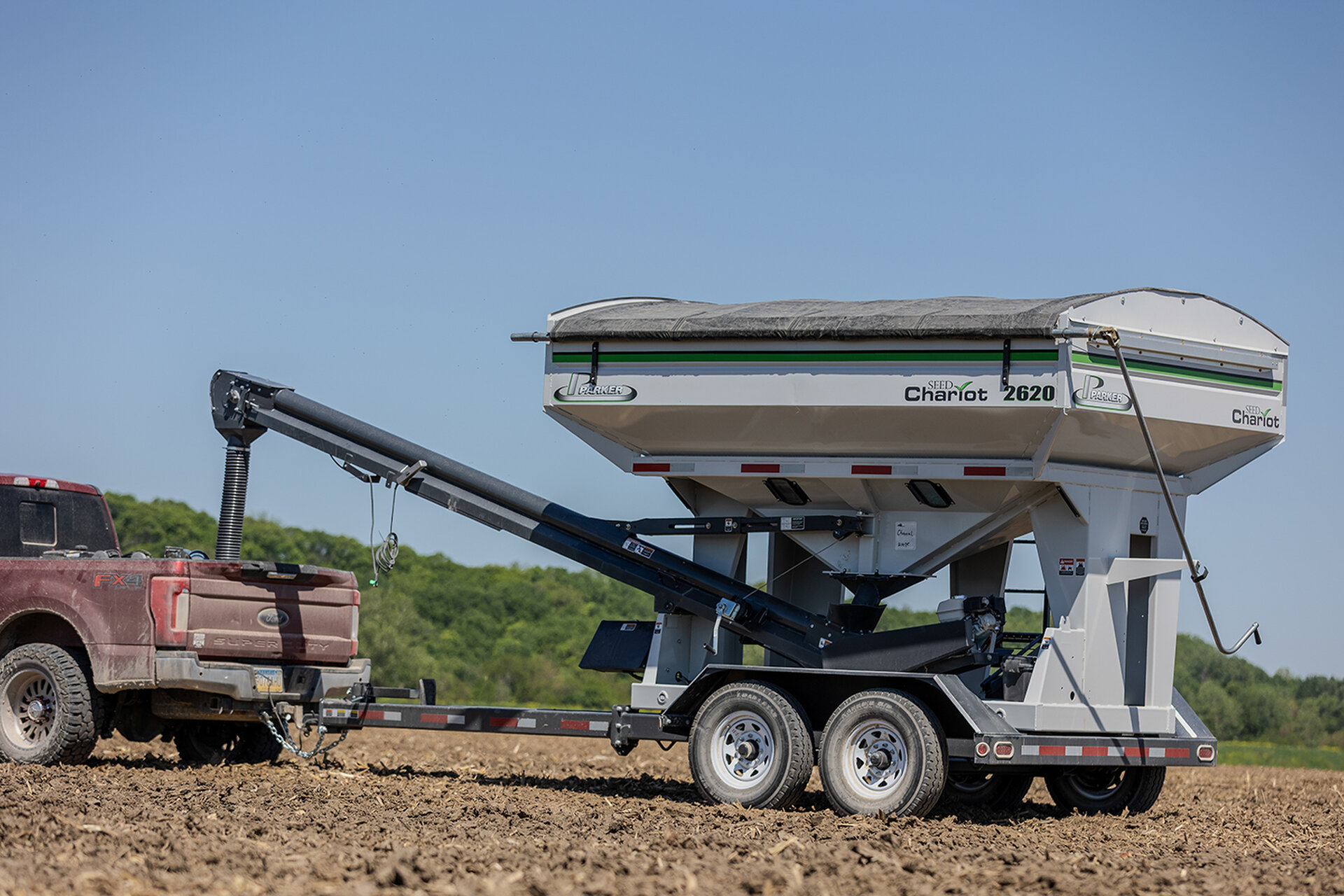

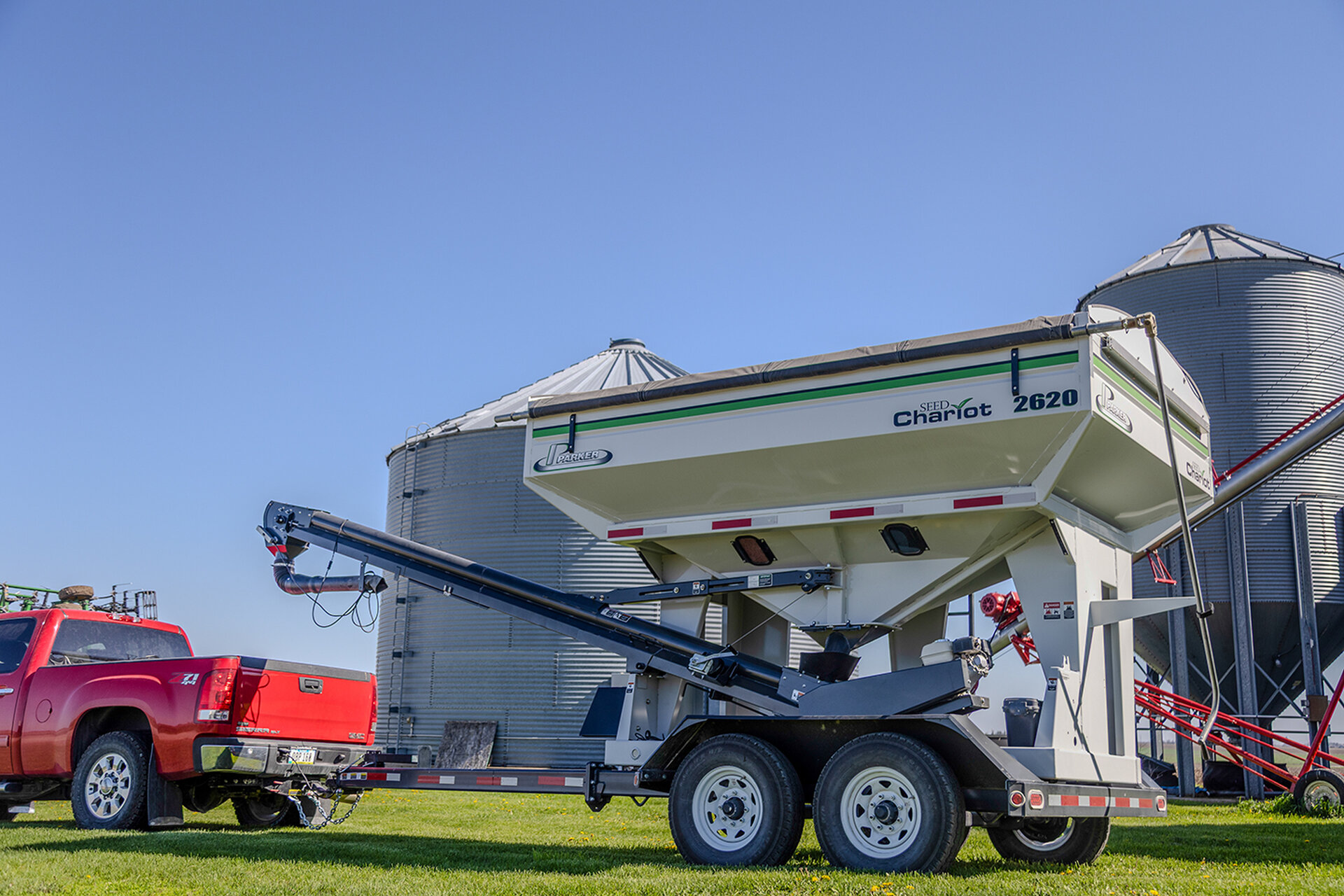

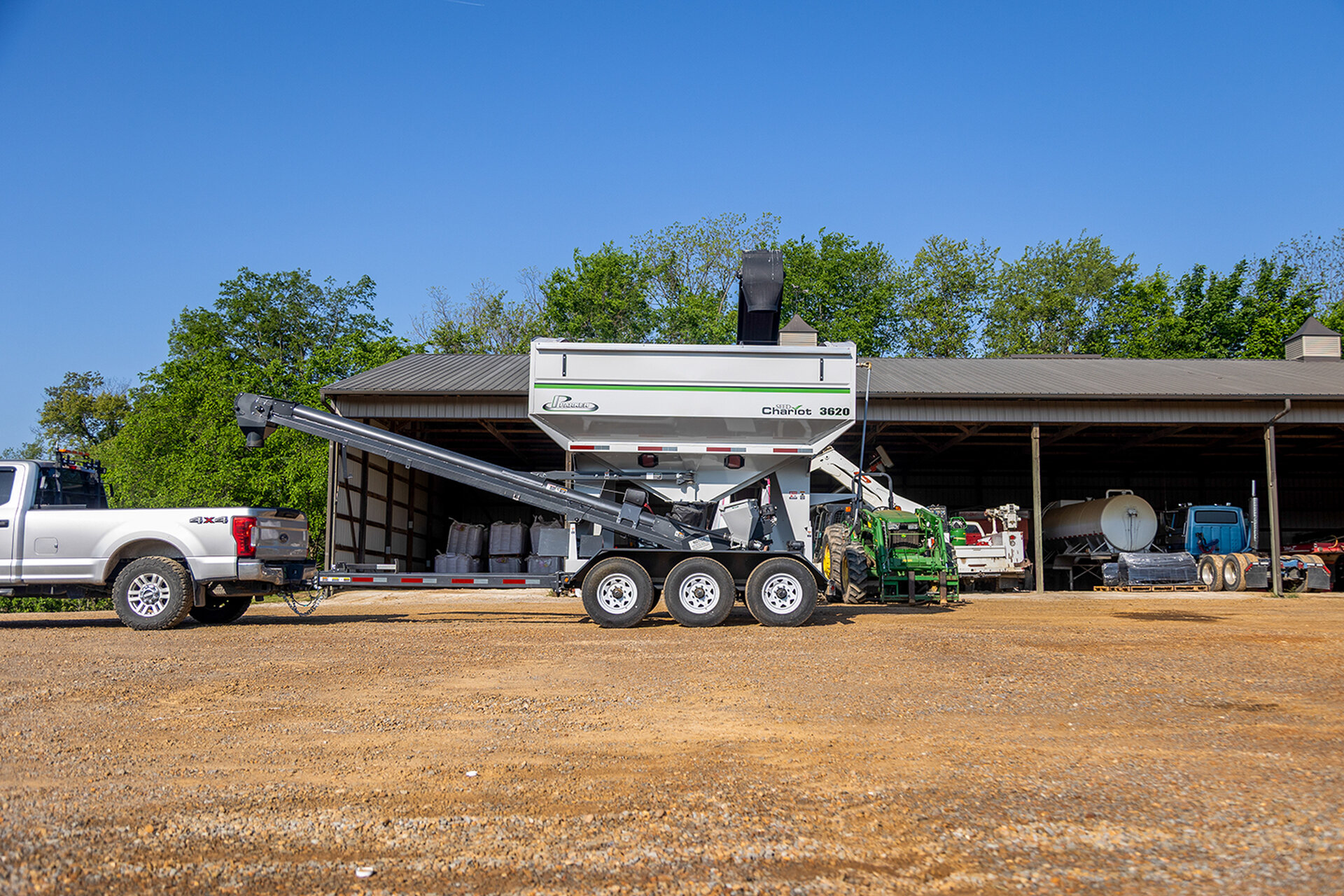

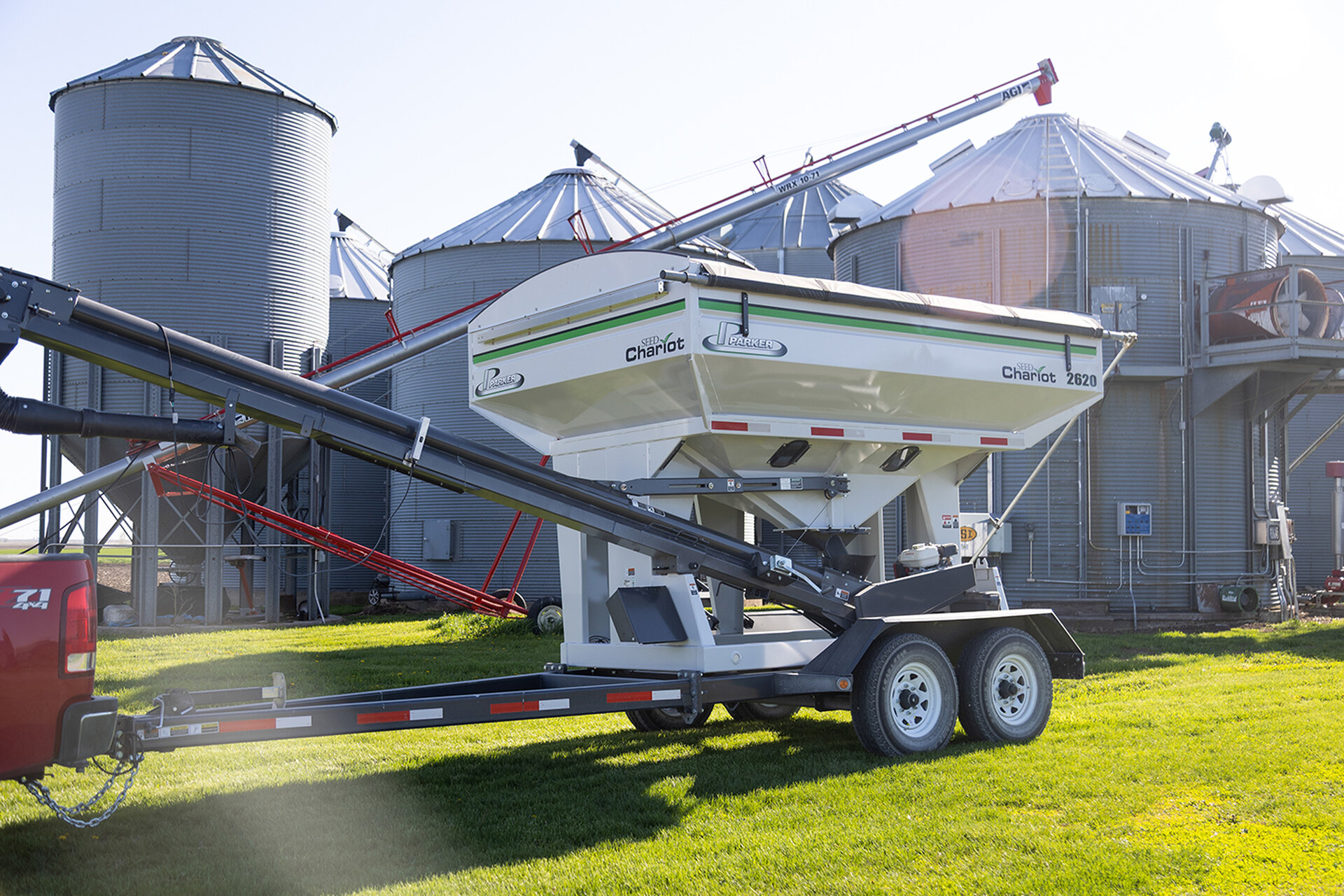

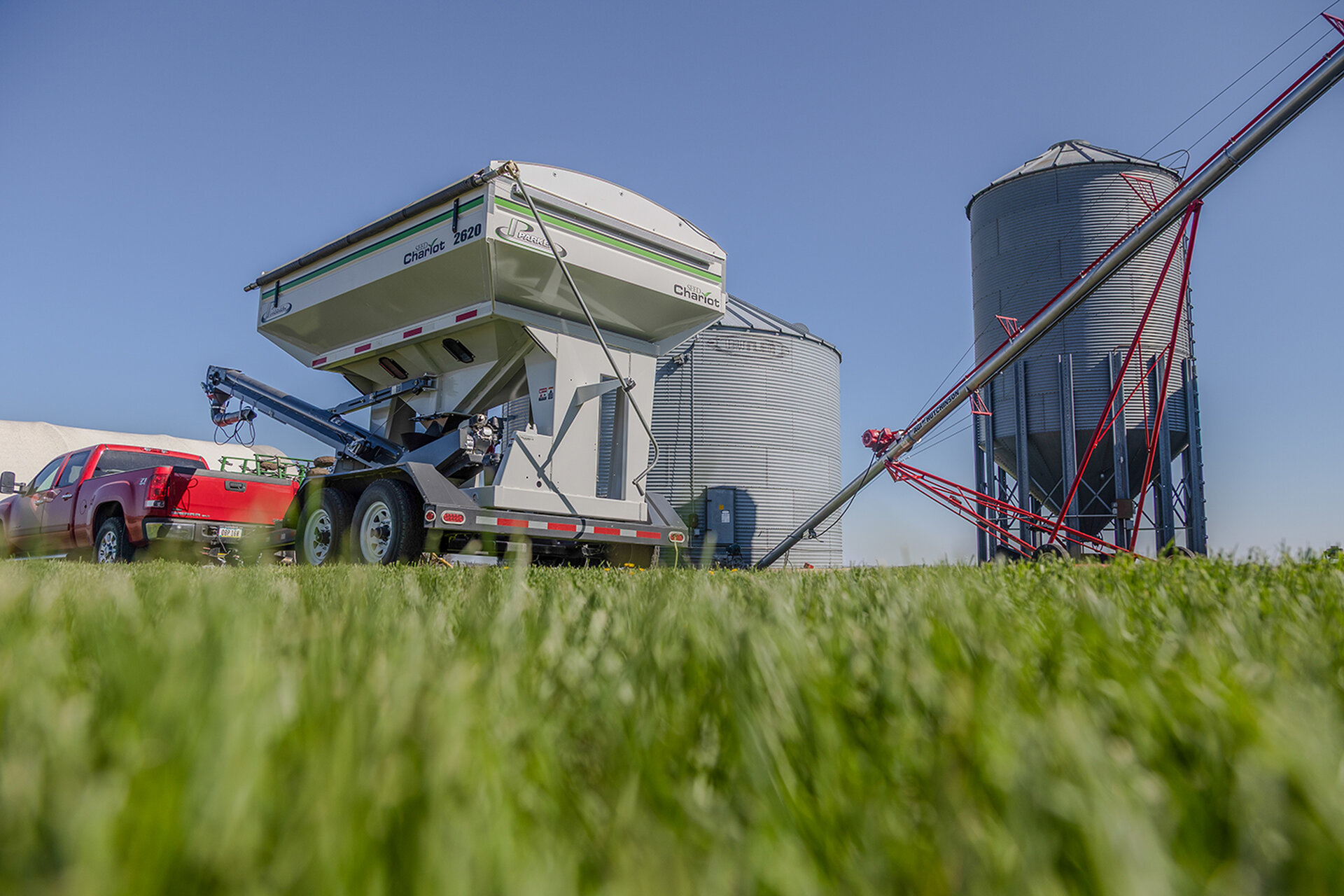

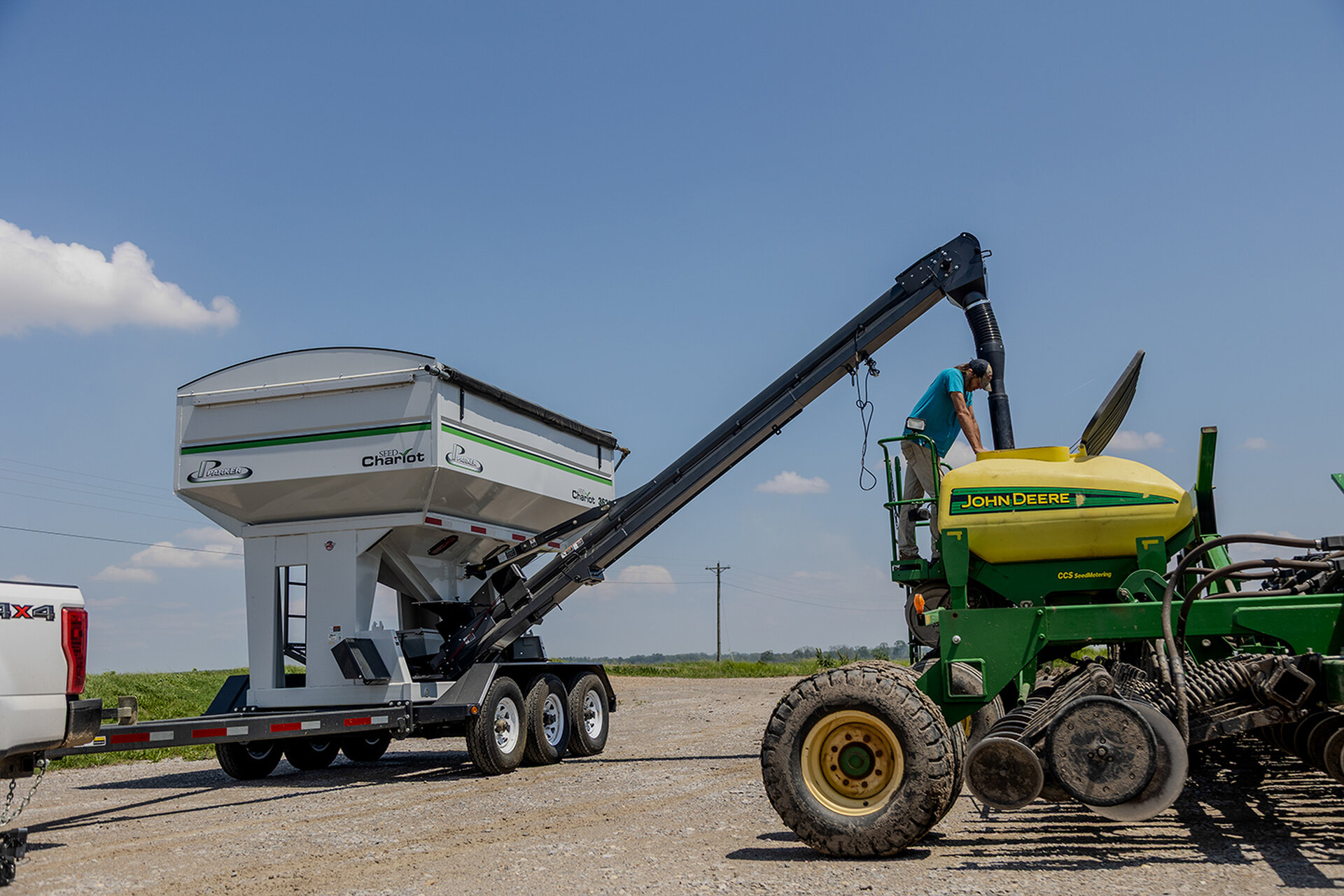

    • Heavy-duty Seed Chariot undercarriage offers durable steel construction, rubber-cushioned suspension, triple axles and electric brakes on the model 3620, tandem dual axles and electric brakes on the model 2620
    • Highway-rated tires, lights, reflectors, 2 5/16" ball hitch and transport chain

    Controls and Convenience

    • Regulate conveyor speed by simply adjusting engine speed
    • Easy-opening slide doors with rubber funnel regulates seed flow into the conveyor and prevents overflow
    • Dual viewing windows for easily monitoring contents during loading and unloading
    • Easy-to-operate on-off control with strong magnet that attaches to conveyor when not in use

    Accessories

    • Electronic scale package with large screen for easy viewing
    • T&G Applicator mounts to conveyor/auger intake for talc and other seed fluency agents
      • Flow-control electric dial for easy rate adjustment
      • Internal agitator keeps talc flowing
    • Spare tire package
    • 10', three-stage telescopic downspout for additional reach and filling convenience
    • Gooseneck, Pintle, or Clevis hitch options
    • Electric lift/lower for conveyor
    • 2-Function Wireless Remote controls conveyor on/off and when equipped with optional electric winch also controls raise and lower.  Includes wrist strap for easier control.  Features mechanical override to allow operation of hydraulic functions if wireless connection is inadvertently lost.
